1,000 Sq Ft Wall Mount Direct Vent Pellet Stove with 28 lb Hopper and Remote

1,000 Sq Ft Wall Mount Direct Vent Pellet Stove with 28 lb Hopper and Remote

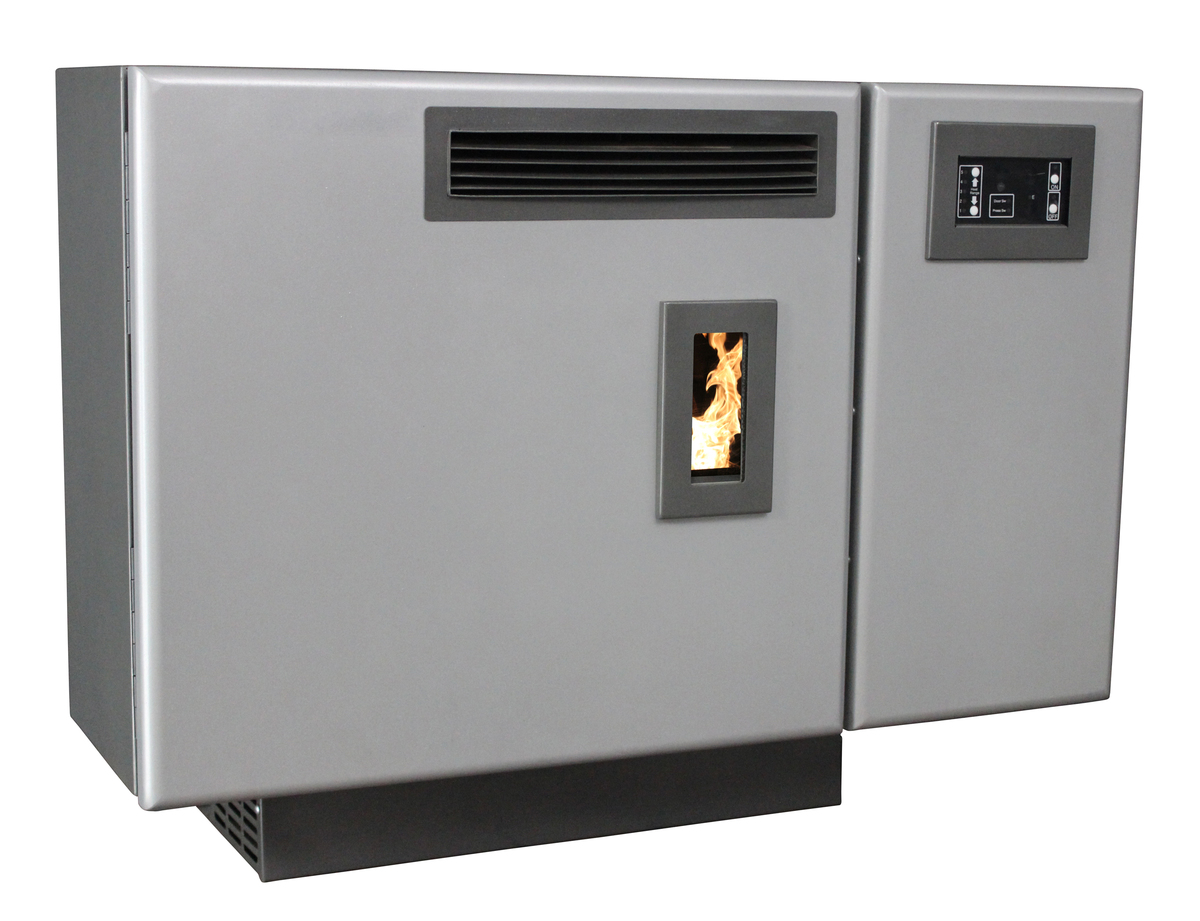

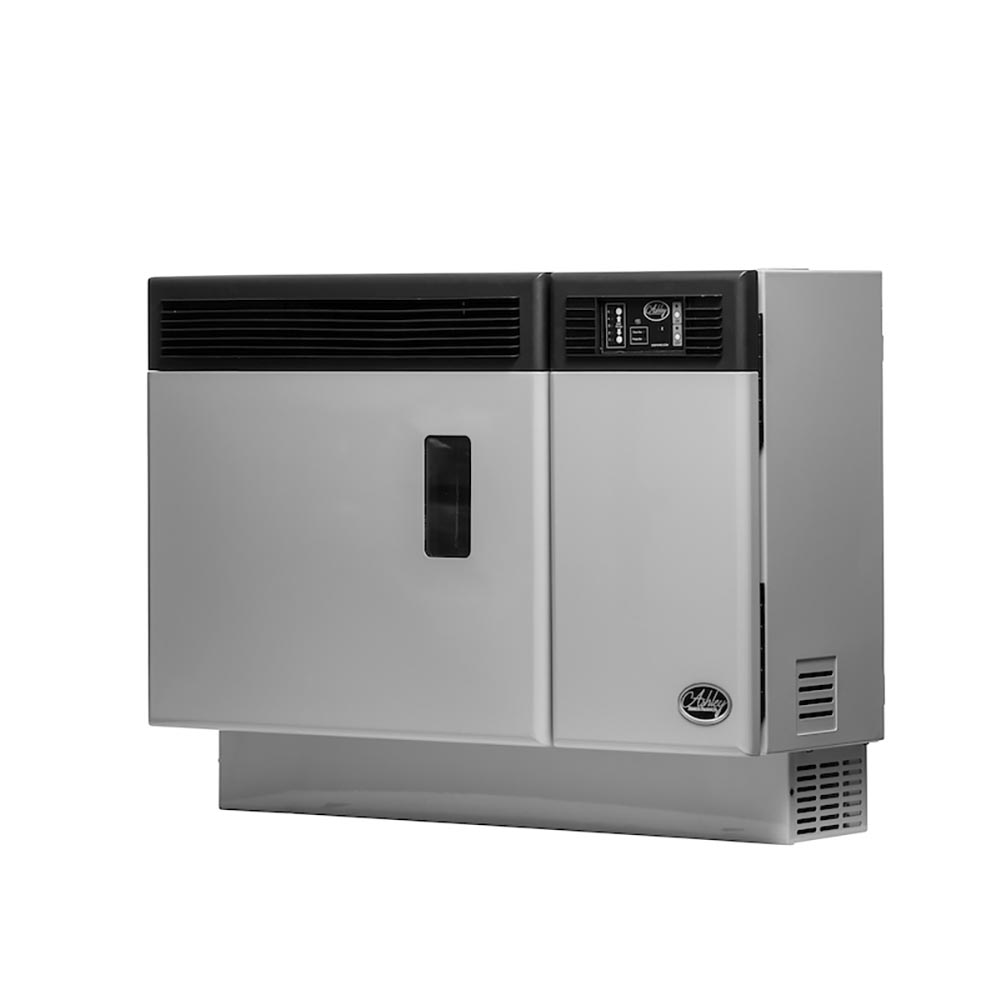

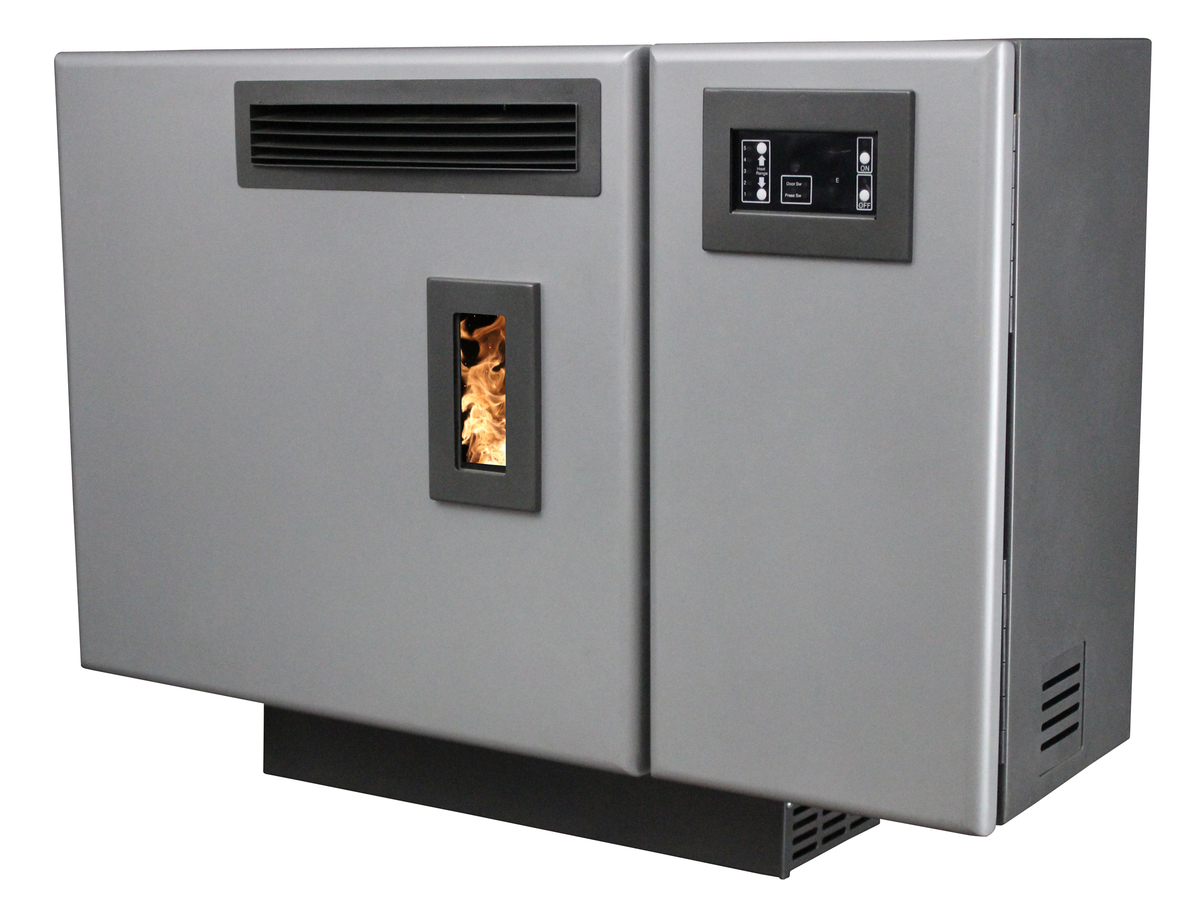

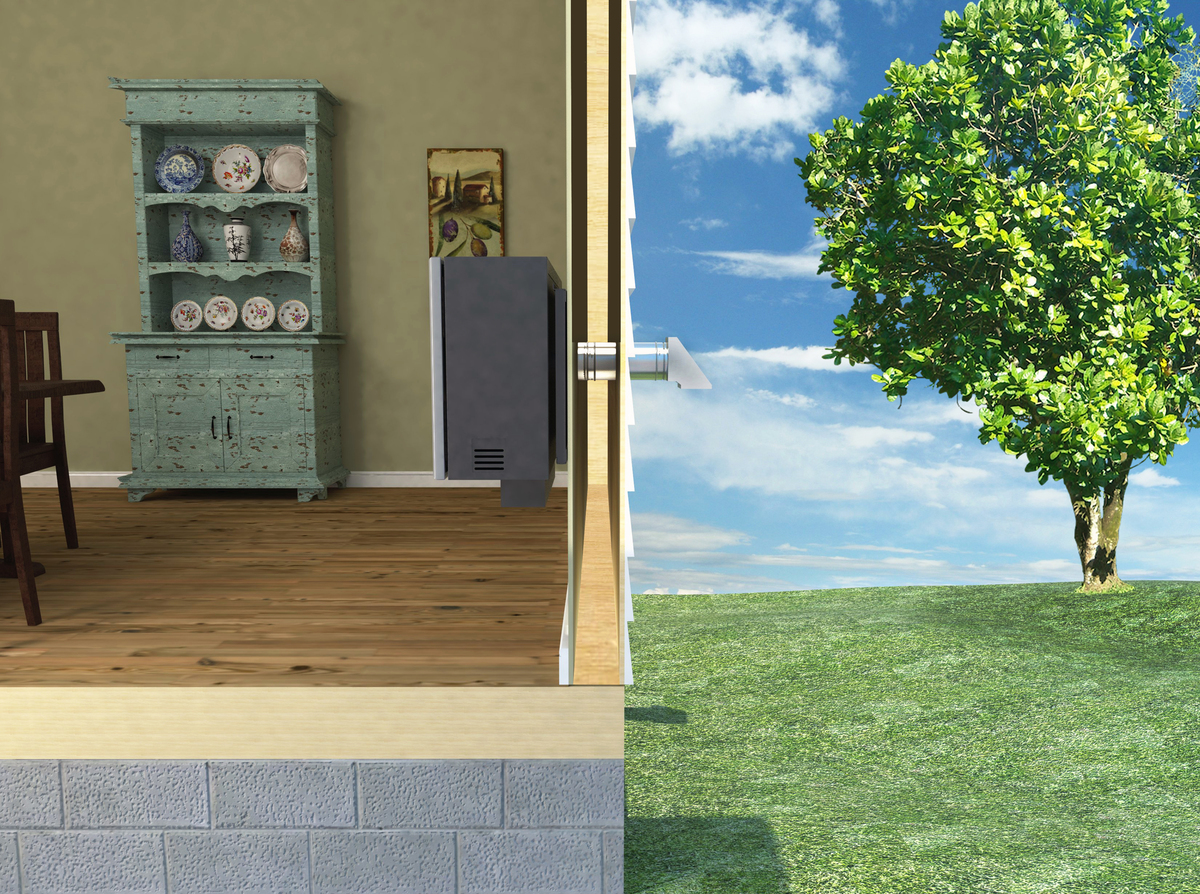

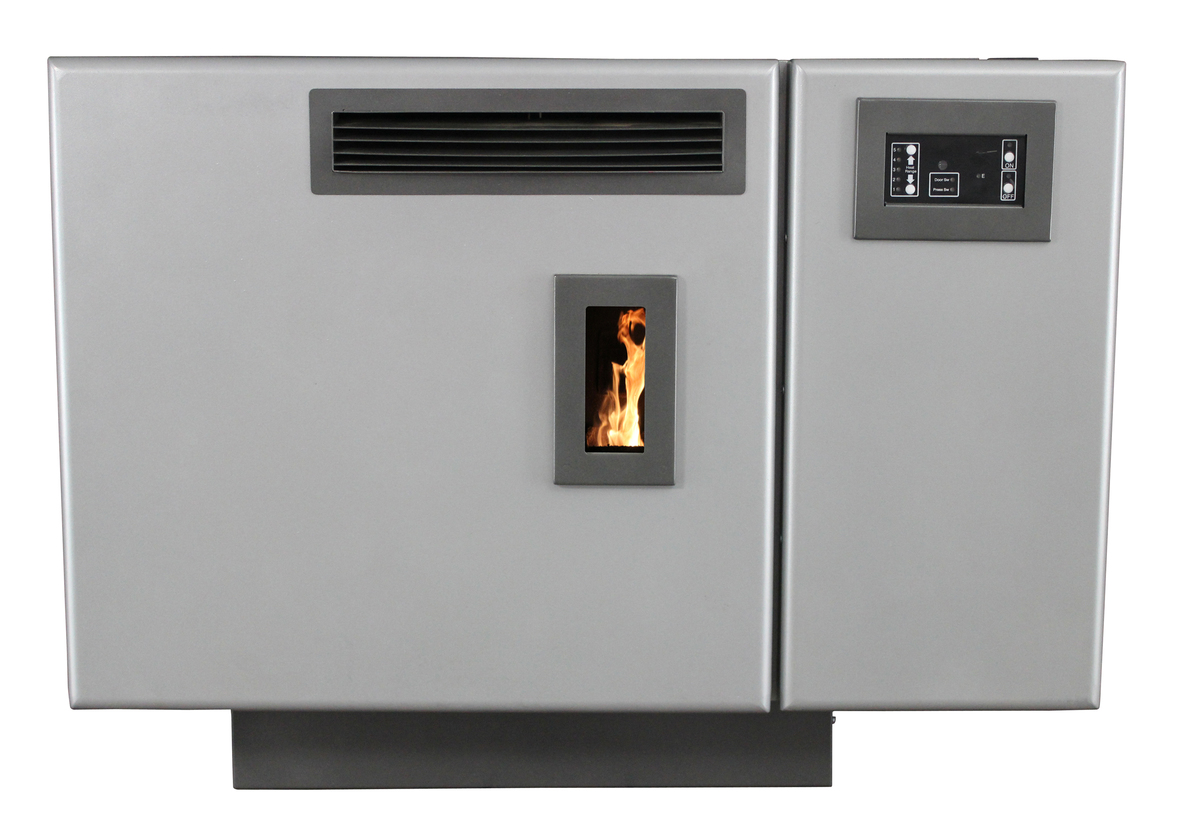

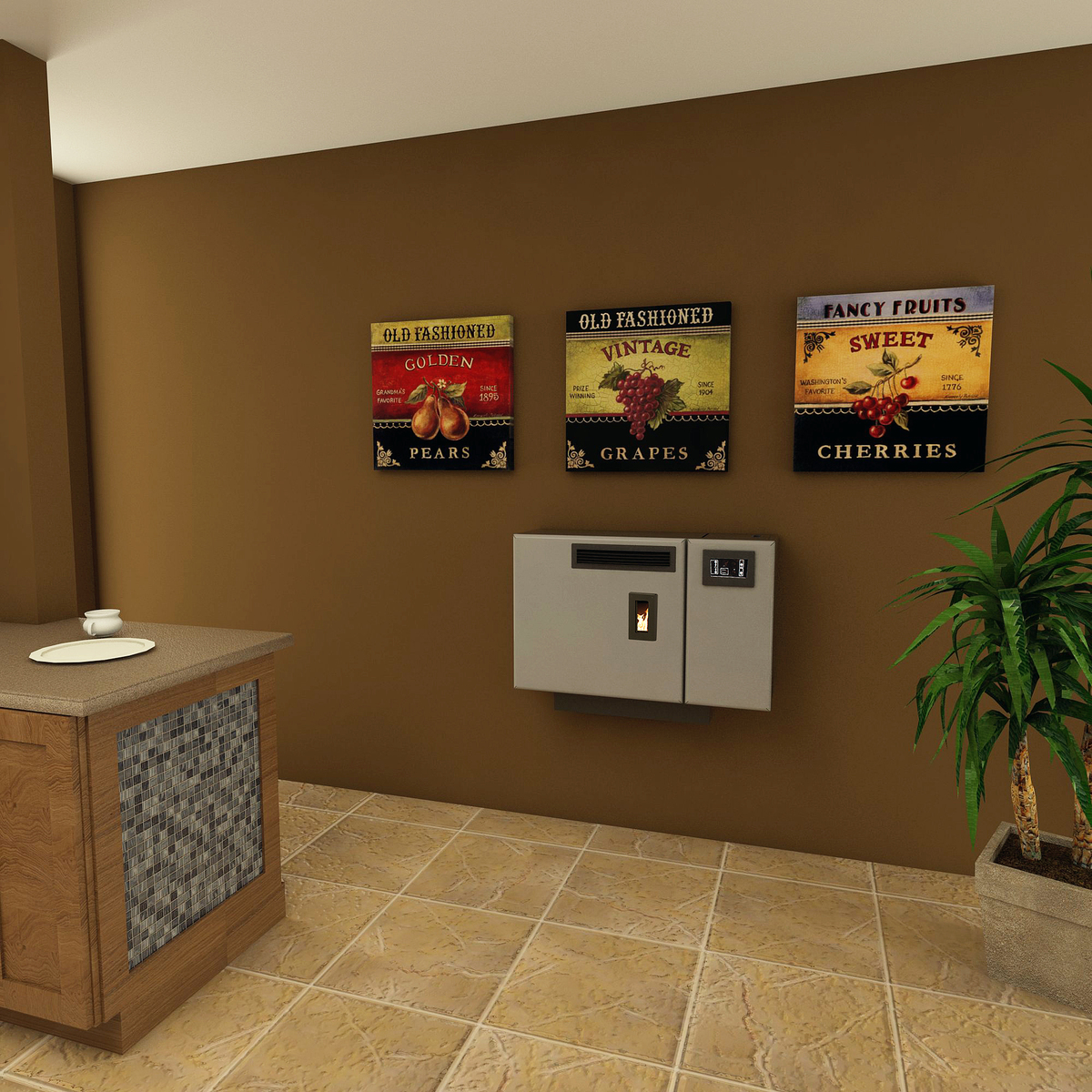

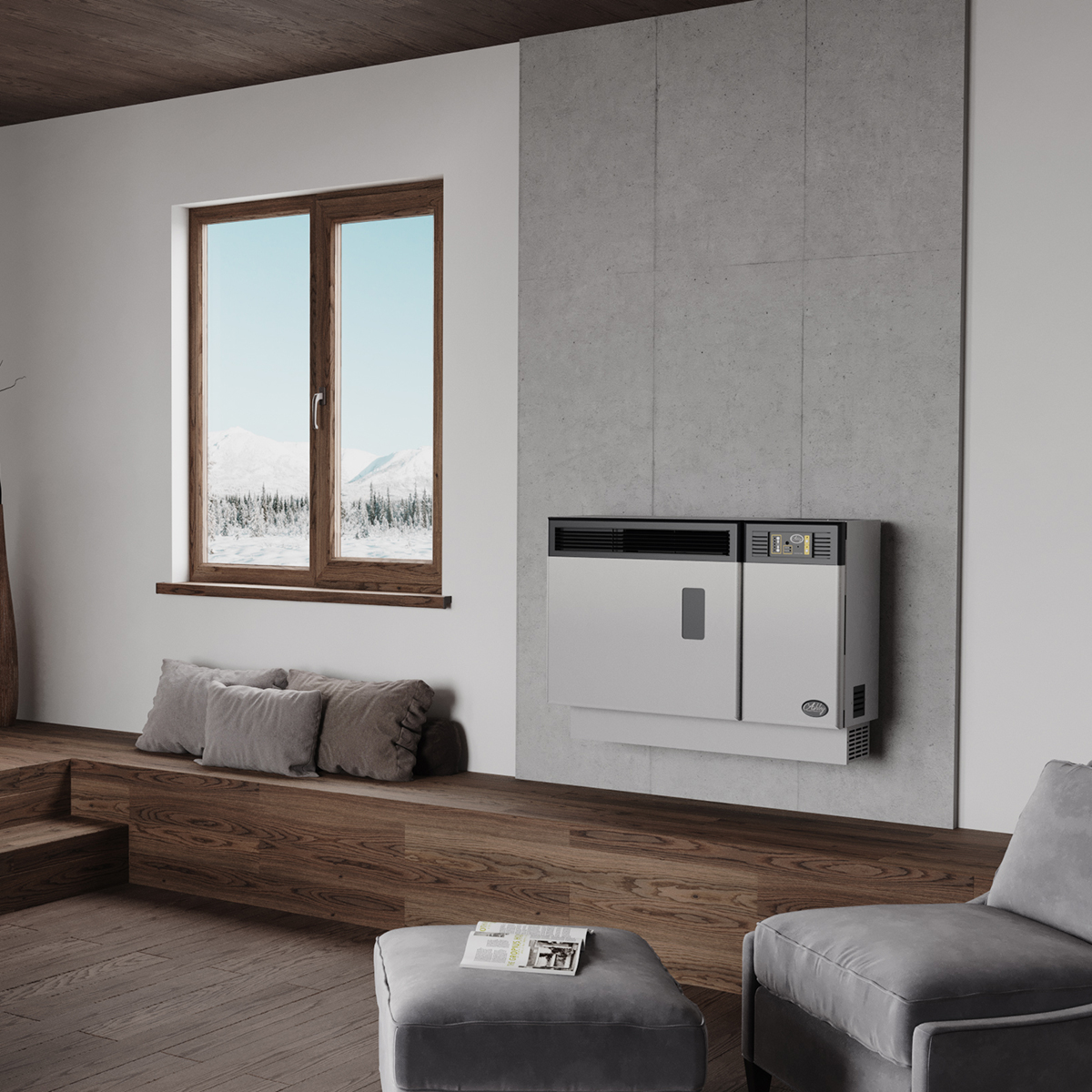

The revolutionary designed AP5000 is perfect for small spaces up to 1,000 Sq. Ft. This “euro styled” design provides a modern take on a traditional pellet stove heater and delivers perfect heating performance while saving you money. The AP5000 wall mounted pellet stove heater has a direct vent design avoiding the typical chimney installs of a traditional pellet stove. Best of all, everything needed is included in the box. All you need to do is supply the pellet fuel to get started. This pellet heater uses a sturdy wall bracket and the installation provides minimized clearances and mounts similar to a flat screen TV. It has an integrated 28 lb hopper that can heat up to 35 hours of use between refills (low setting). A remote control is included to make heating adjustments a breeze.

  • Model #: AP5000

  • Features
    • 28 pound pellet hopper capacity

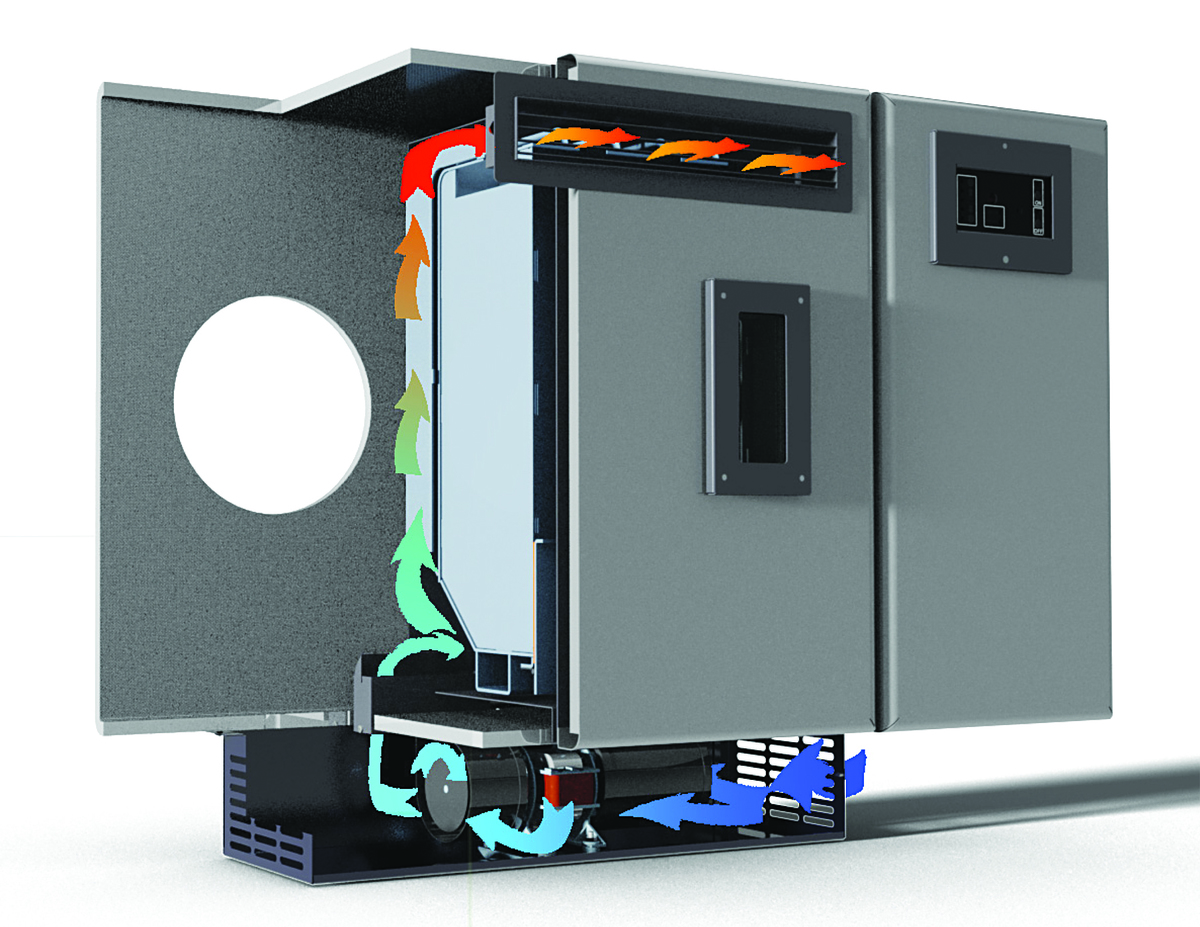

    • 150 CFM blower and all venting components included (including mounting bracket, stove adapter, cap, wall thimble, vent attachment and twist lock pipe)

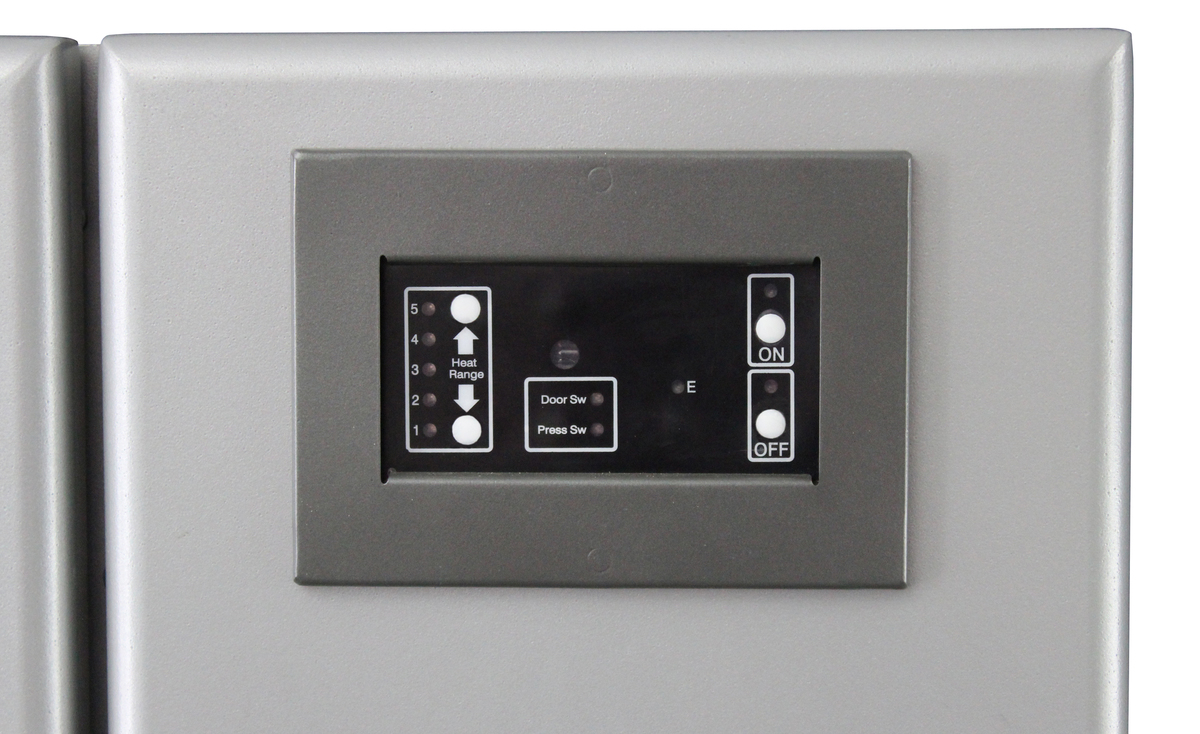

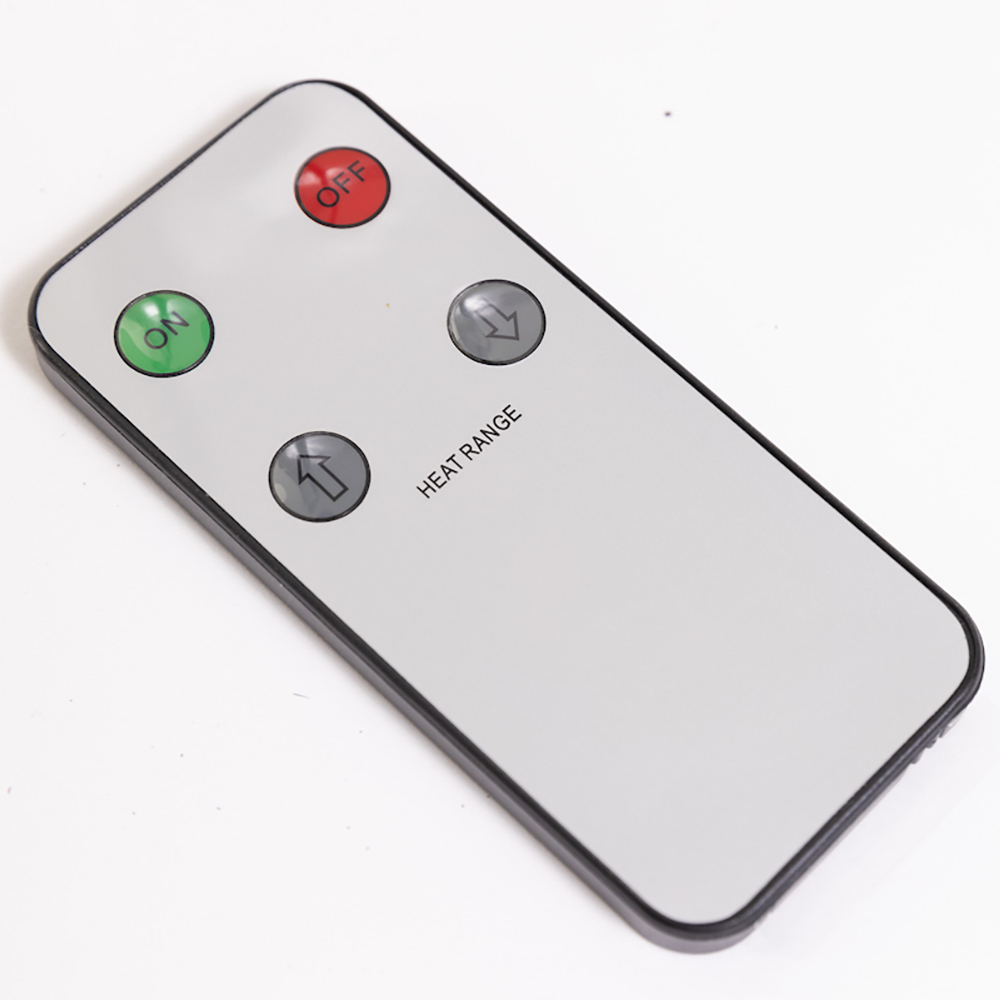

    • Digital controls with remote control
    • Automatic ignition makes starting easy and quick
    • Mobile home approved (USA only)
  • Specifications
    Product Manufacturer Warranty Limited Lifetime firebox warranty, 1 Year all other parts, 1 year Electrical parts
    Product Venting Required Yes
    Product Heating Area (ft²) 1000
    Product Auto Ignition Yes
    Product Removable Water Reservoir No
    Product Catalytic/Non Catalytic Non Catalytic
    Product Pedestal Base Included No
    Product Vent Location Rear
    Product Color / Finish Beige
    Product Outside Air Kit Yes
    Product Ignition System Automatic
    Product Wood Or Pellet Burning Pellet
    Product Ash Drawer No
    Product Blower Yes
    Product Stove Type Freestanding
    Product Depth (in) 12.43
    Product Maximum BTU 24000
    Product Height (in) 27
    Product Installation Method Wall Mounted
    Product ETL Listed Yes
    Product Efficiency 78
    Product CSA Certified Yes
    Product EPA Approved Yes
    Product Air Wash System No
    Product Inside Dimensions 4 x 7 x 6.5
    Product Width (in) 36
    Product Hopper Capacity (ft³) 28
    Product Vent Diameter (in) 3
    Product UL Listed Yes
    Product Temperature Gauge No
    Product Package Contents Wall mount pellet heater, went kit,mouting bracket,stove adaptor,cap,wall thimble, vent attachement and twist lock pipe.
    Product Heater Type Outlet
    Product Vent Type Coaxial
    Product Cooktop No
    Product Touchpad Controls Yes
    Product Brick-Lined Firebox No
    Product Built-In Variable Speed Blower Yes
    Product Vented Or Vent-Free Vented
  • Dimensions
    Assembled Width (in) 36
    Package Weight 230
    Package Width 46.5
    Package Height 33.5
    Assembled Depth (in) 12.43
    Package Depth 18
    Assembled Height (in) 27
  • Other
    MFG Brand Name US Stove Company
    Does this Product Have a Warranty? Yes
    MFG Model # (Series) AP5000
    Manufacturer Warranty Limited Lifetime firebox warranty, 1 Year all other parts, 1 year Electrical parts
    Warranty Type Limited - Parts
    Supplier Product Type/Category Home - Heating, Cooling & Air Quality
    Search Keywords Wall mount, Pellet Heater, Direct Vent
    Warranty Type of Effective Date Purchase Date
    UPC 012685050027
  • Regulatory
    California Proposition 65 Warning Required Yes
    Contains Chemicals that Cause Cancer (Calif Prop65) Yes
    Item has Restrictions? No
    List the Chemicals contained that cause Cancer per California Proposition 65 Carbon Monoxide
  • FAQs
    • What is my warranty?
      All replacement parts are covered for 1 year from the date of purchase. The integrity of the firebox itself is covered for 3 years from the purchase date. Some dealers may sell extended warranties. You will need to contact your dealer for assistance if you have purchased one and are outside of the US Stove coverage time frame.
    • Can I burn corn in my pellet stove?
      No, you cannot burn corn in your pellet stove. The pellet stove was designed and tested for wood pellets only. Burning corn in your stove will void your warranty and may create a safety hazard or cause damage to your stove. You should only burn premium hard wood pellets in your pellet stove. The only exception to this rule is if your stove is specially equipped to burn corn like the 6041 Series stoves. These stoves come with an agitator and a special burn pot to allow them to burn corn and other bio-fuels.

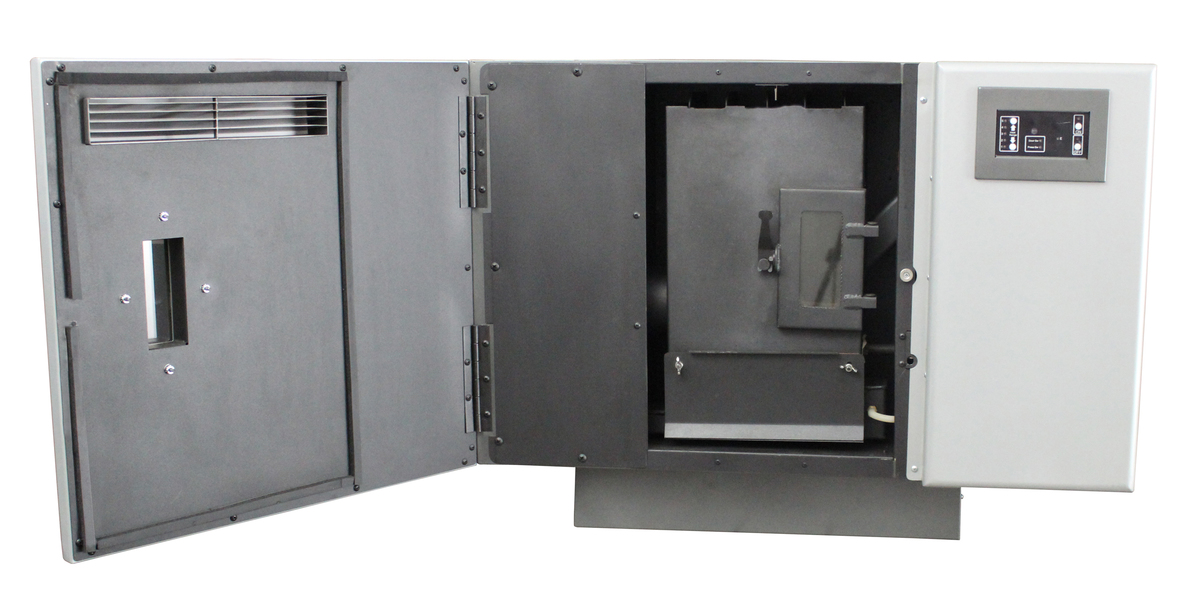

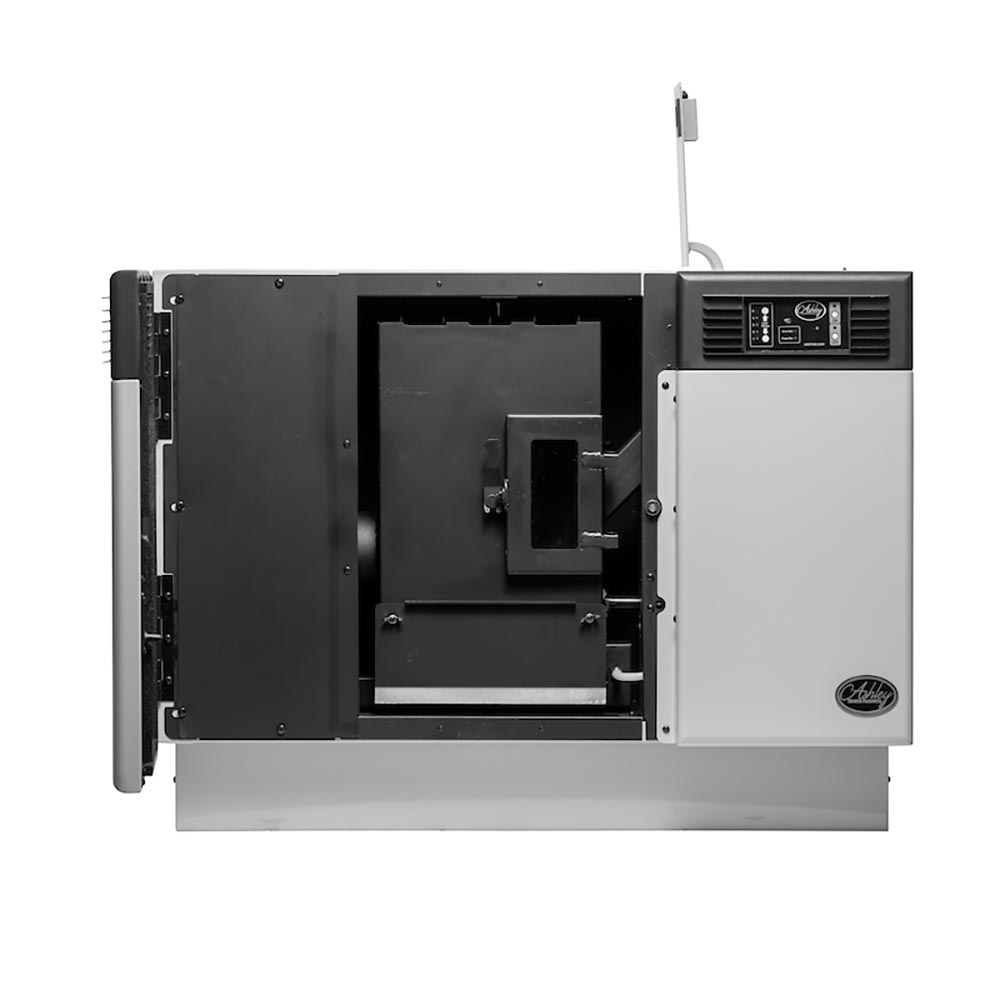

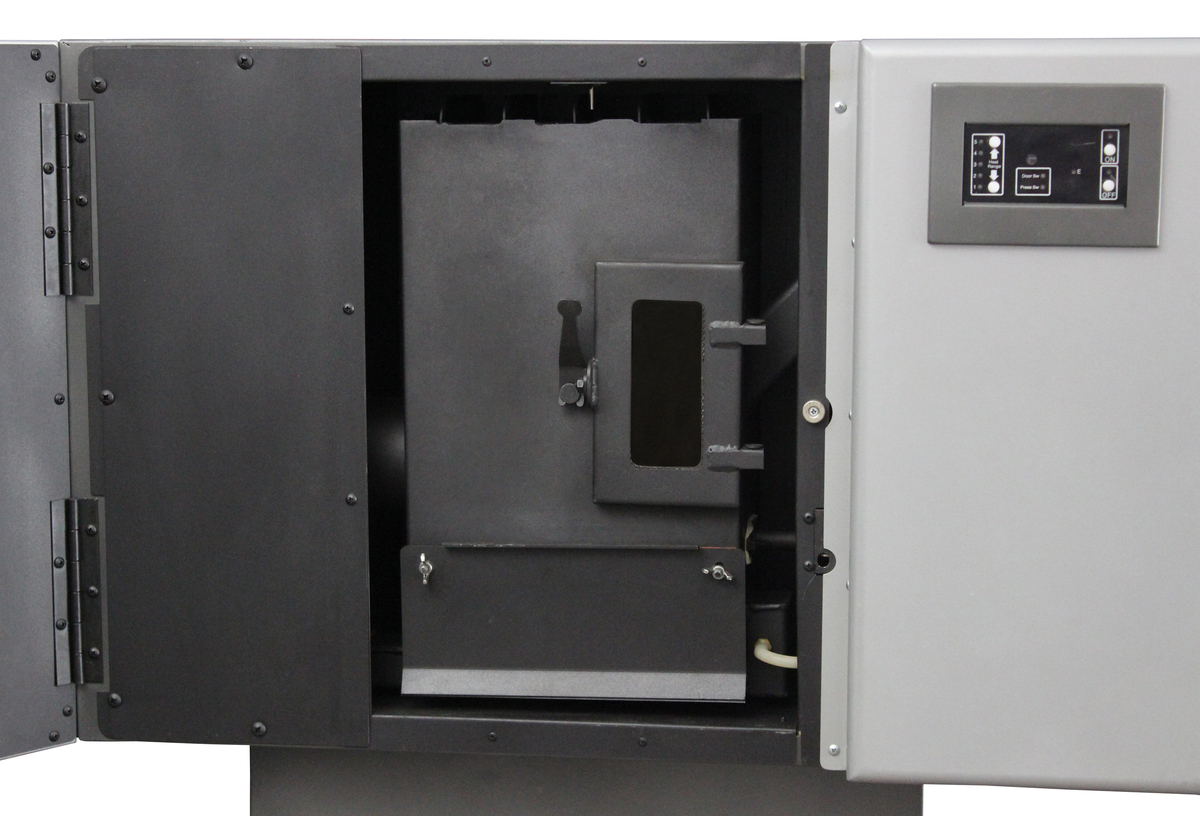

    • What are the slides in the back wall or in the bottom of the firebox for?
      They are clean-outs for the ash build up. These should be cleaned out AT LEAST every burning season or for every ton of pellets burned. You should check them periodically to ensure there’s not a lot of ash build-up. This will greatly affect the performance of your pellet/corn stove!
    • Do I need a Fresh Air Kit?
      This will depend on how air tight the home/building is. If it is very air tight, negative pressure can form and interfere with the proper functioning of the stove. If the unit is installed in a mobile/manufactured home, the fresh air kit is REQUIRED!

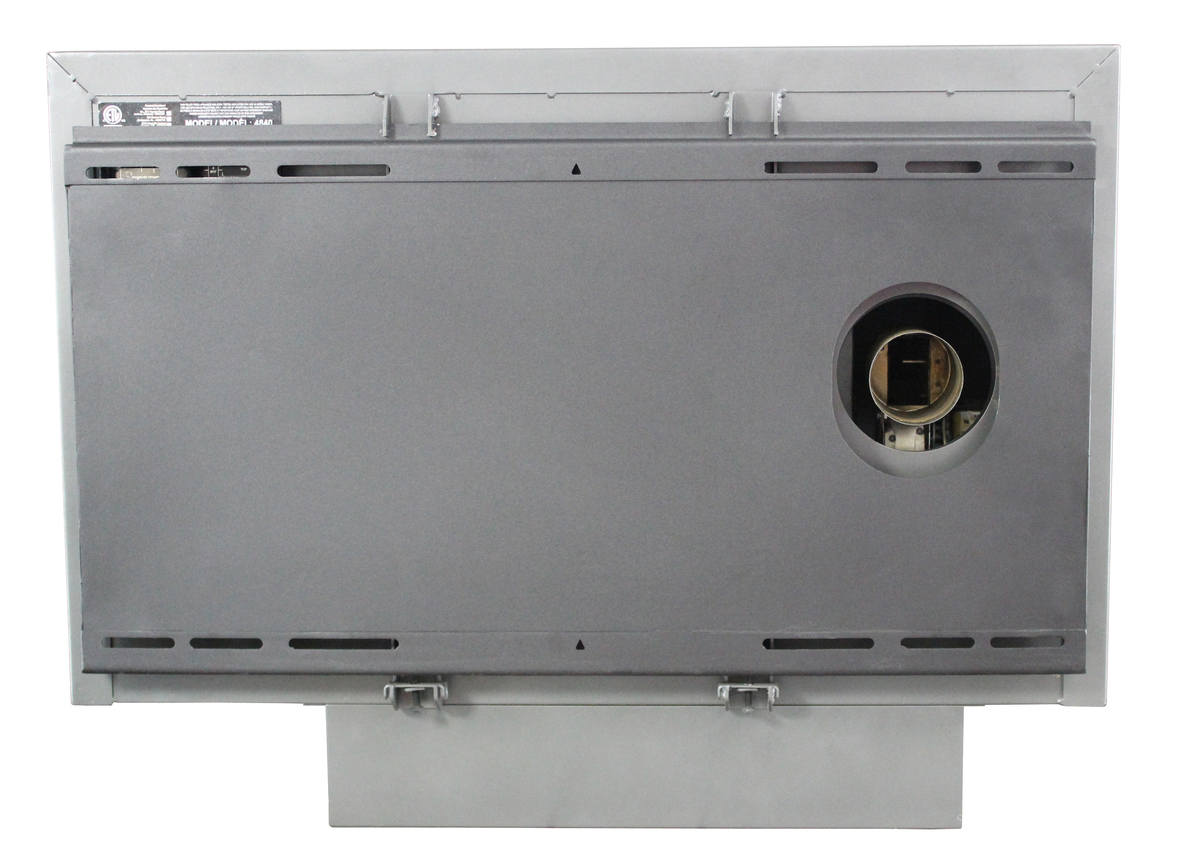

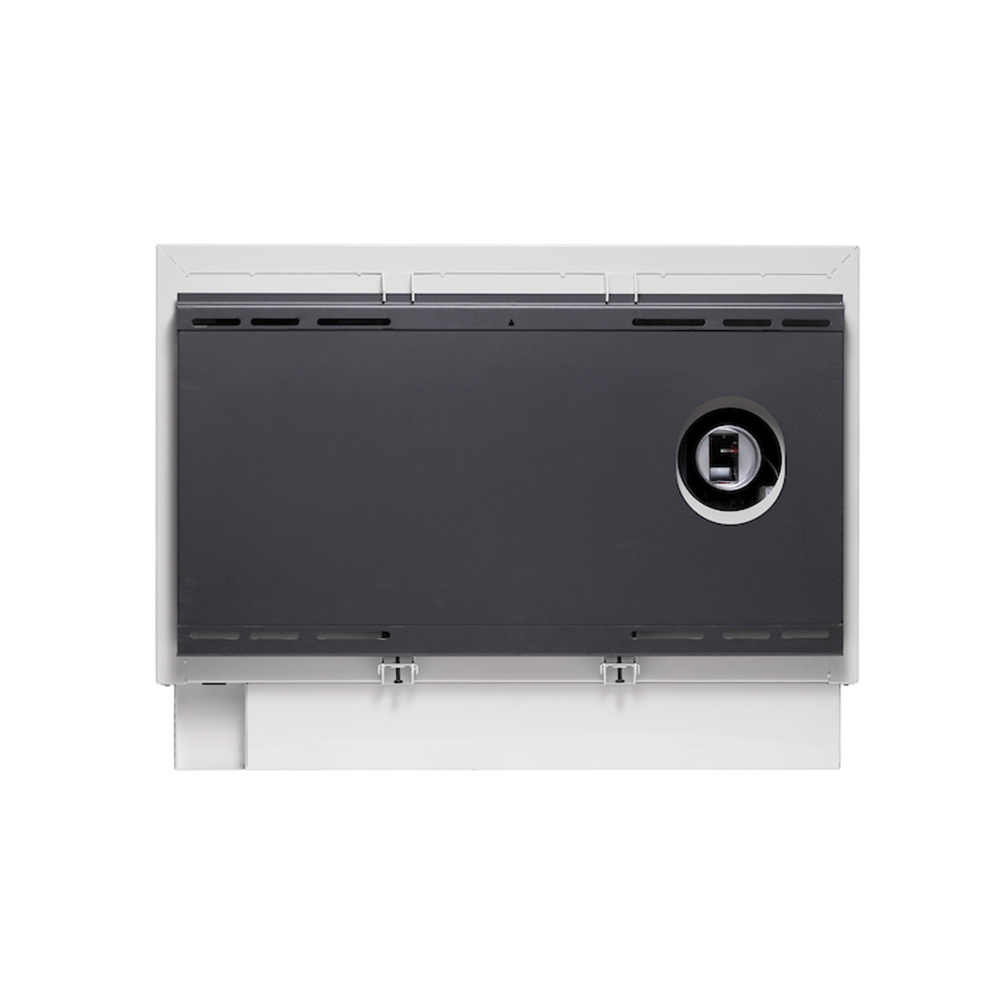

    • What is the second opening on the back of the stove used for?
      The second opening is the unit’s air intake. This is where you would hook up the Fresh Air Kit (Part # 69FAK is a 2in opening and Part # 4FK for the 4 in openings). Piping the intake to the outside allows combustion air to enter the firepot from the outside. This will keep negative pressure from forming within the building. It will also increase the efficiency of your stove. This kit is a requirement for mobile/manufactured homes!
Document File Type File Size Product
Pellet Stove Warranty application/pdf 175 KB Download️
US Stove Company 25C Tax Certificate application/pdf 441 KB Download️
AP5000 Owner's Manual application/pdf 5 MB Download️
  • What is my warranty?
    All replacement parts are covered for 1 year from the date of purchase. The integrity of the firebox itself is covered for 3 years from the purchase date. Some dealers may sell extended warranties. You will need to contact your dealer for assistance if you have purchased one and are outside of the US Stove coverage time frame.
  • Can I burn corn in my pellet stove?
    No, you cannot burn corn in your pellet stove. The pellet stove was designed and tested for wood pellets only. Burning corn in your stove will void your warranty and may create a safety hazard or cause damage to your stove. You should only burn premium hard wood pellets in your pellet stove. The only exception to this rule is if your stove is specially equipped to burn corn like the 6041 Series stoves. These stoves come with an agitator and a special burn pot to allow them to burn corn and other bio-fuels.
  • What are the slides in the back wall or in the bottom of the firebox for?
    They are clean-outs for the ash build up. These should be cleaned out AT LEAST every burning season or for every ton of pellets burned. You should check them periodically to ensure there’s not a lot of ash build-up. This will greatly affect the performance of your pellet/corn stove!
  • Do I need a Fresh Air Kit?
    This will depend on how air tight the home/building is. If it is very air tight, negative pressure can form and interfere with the proper functioning of the stove. If the unit is installed in a mobile/manufactured home, the fresh air kit is REQUIRED!
  • What is the second opening on the back of the stove used for?
    The second opening is the unit’s air intake. This is where you would hook up the Fresh Air Kit (Part # 69FAK is a 2in opening and Part # 4FK for the 4 in openings). Piping the intake to the outside allows combustion air to enter the firepot from the outside. This will keep negative pressure from forming within the building. It will also increase the efficiency of your stove. This kit is a requirement for mobile/manufactured homes!
