1,200 Sq. Ft. Pedestal Wood Stove

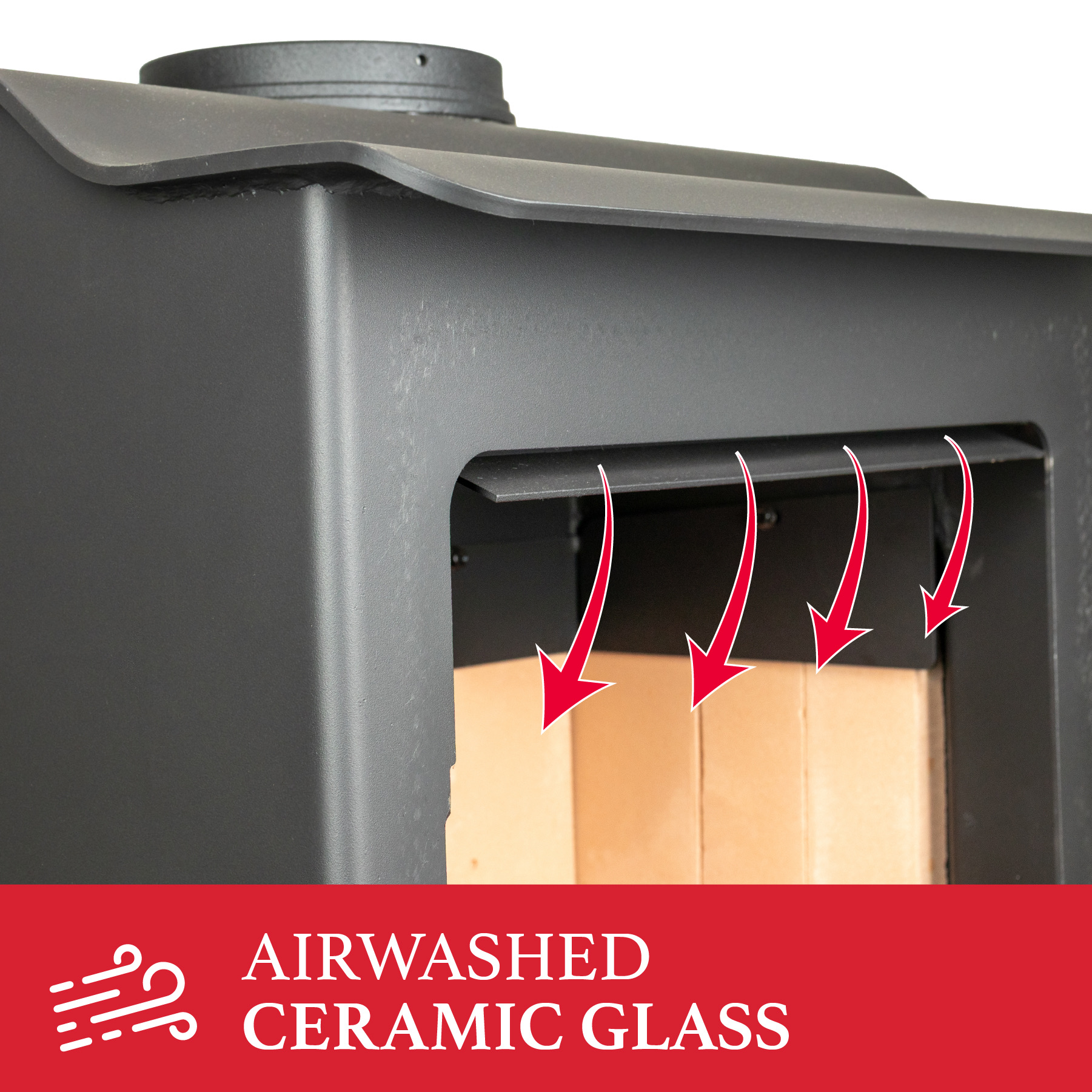

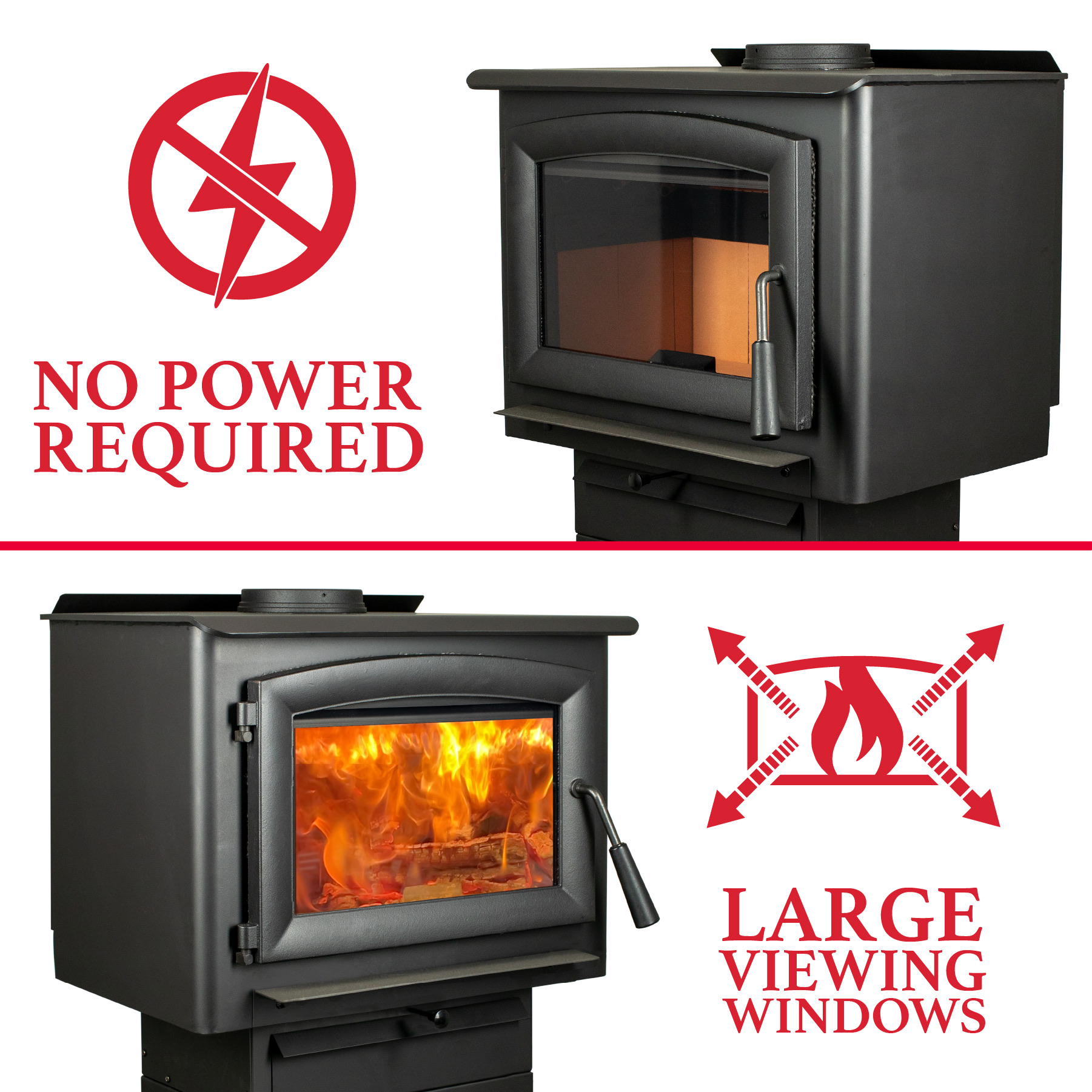

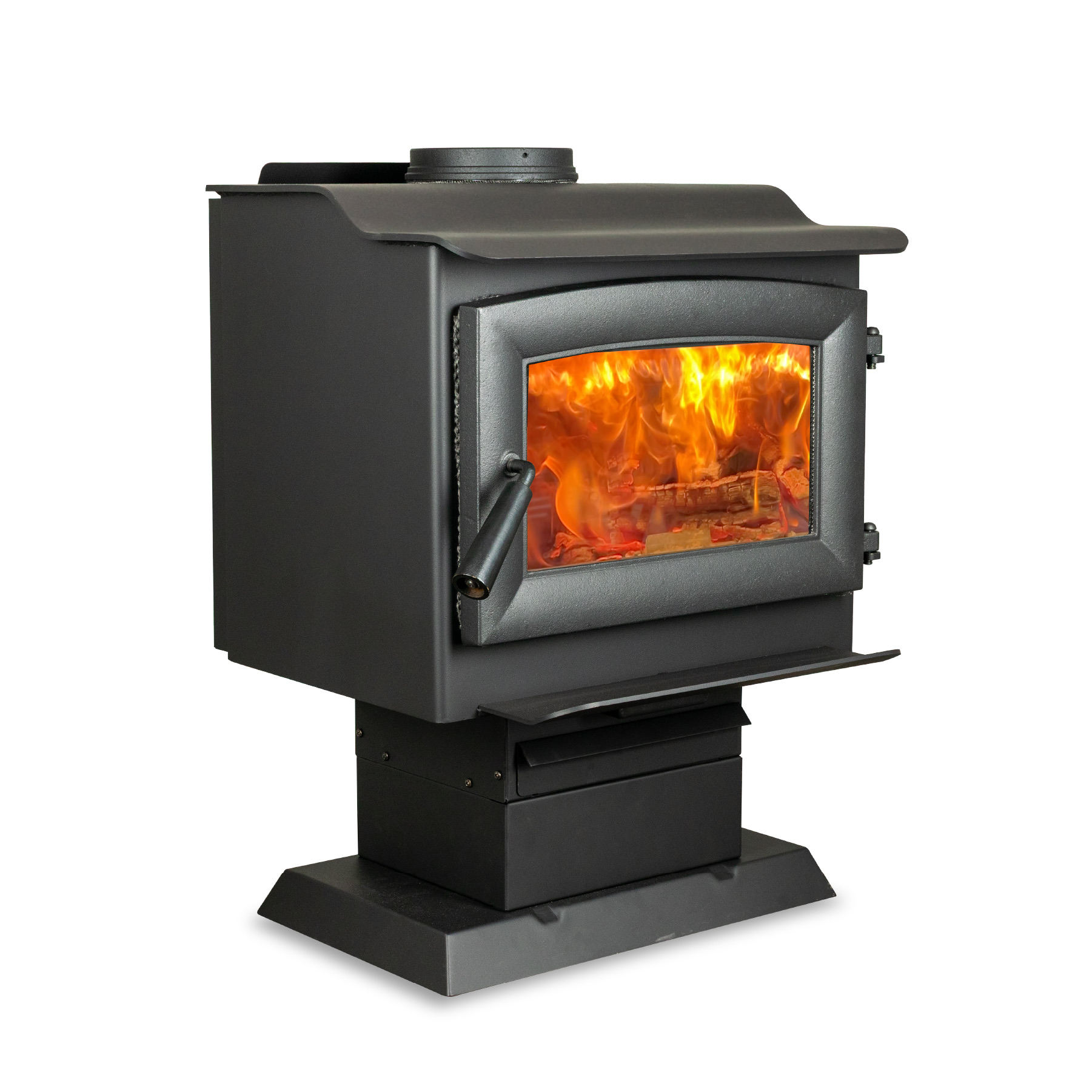

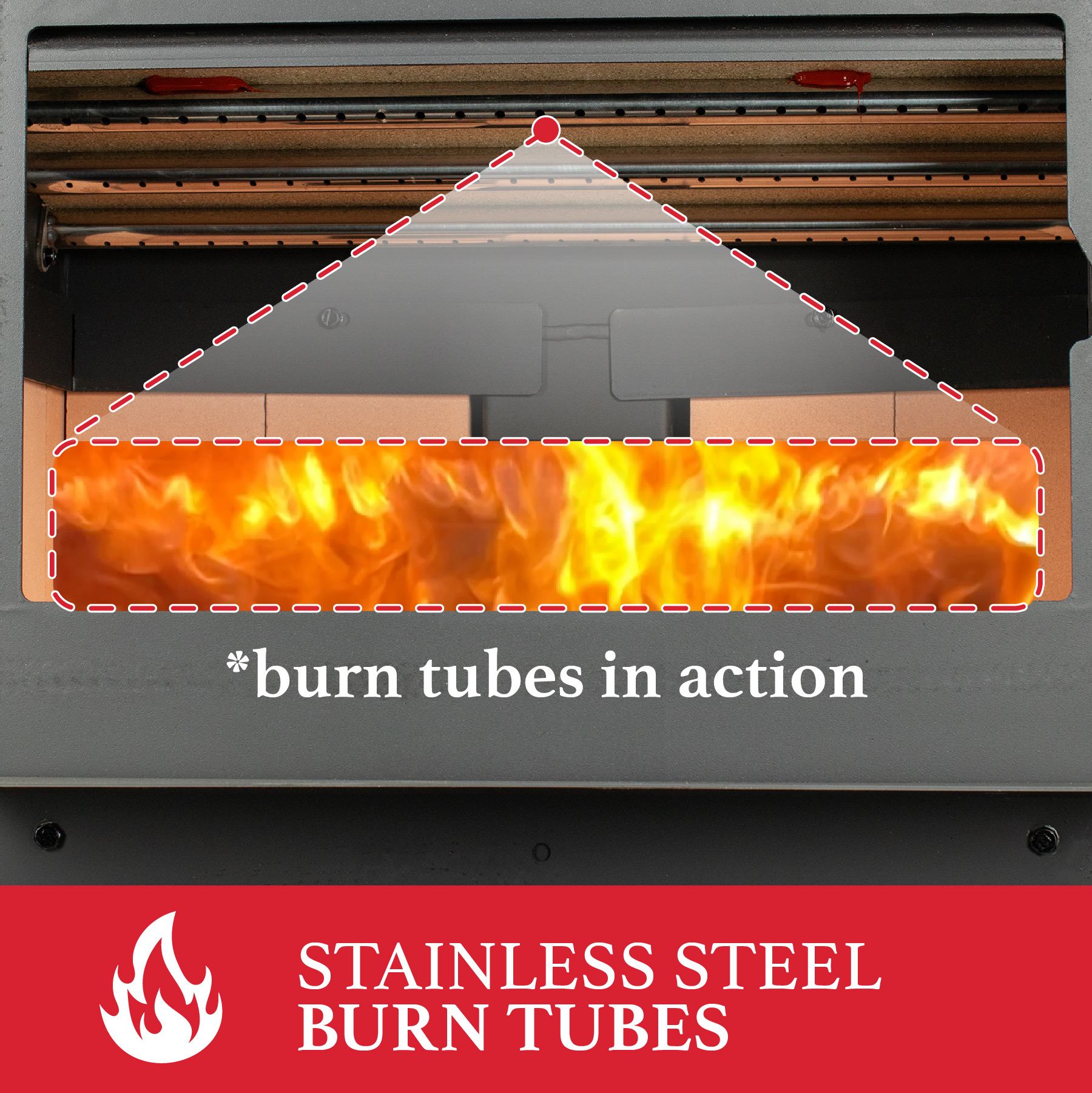

The Ashley Hearth Products AW1120E-P is a beautiful air tight plate steel wood burning stove with nickel-pewter trim that accents a charcoal black finish. A heavy cast iron door with air washed ceramic glass allows a magnificent view of the burning fire that will enhance any hearth setting. The AW1120E-P wood stove meets the stringent requirements of the EPA Certification Guidelines. This wood stove has 68,000 BTUs that can heat up to 1,200 square feet. The Ashley AW1120E-P burns logs up to 18″ in length while the pedestal base provides an elegant touch to any room. Here’s how it works: the primary air inlet at the front of the stove ignites the wood upon start up. Once burning, the secondary air inlet at the rear of the firebox feeds air to the top of the stove through three (3) ignition tubes directly above the wood. The result is that you have ignition, or fire, at the bottom and at the top of the wood stove which, in effect, consumes the wood. This is a very efficient method of getting the most energy possible out of the wood that you are burning. The AW1120E-P model replaces the previous Vogelzang models TR001, TR001B, TR001WS and APS1100 wood stoves.

  • Model #: AW1120E-P

  • Features
    • Blower sold separately (model CB36 or B36)
    • Mobile home approved (USA only)

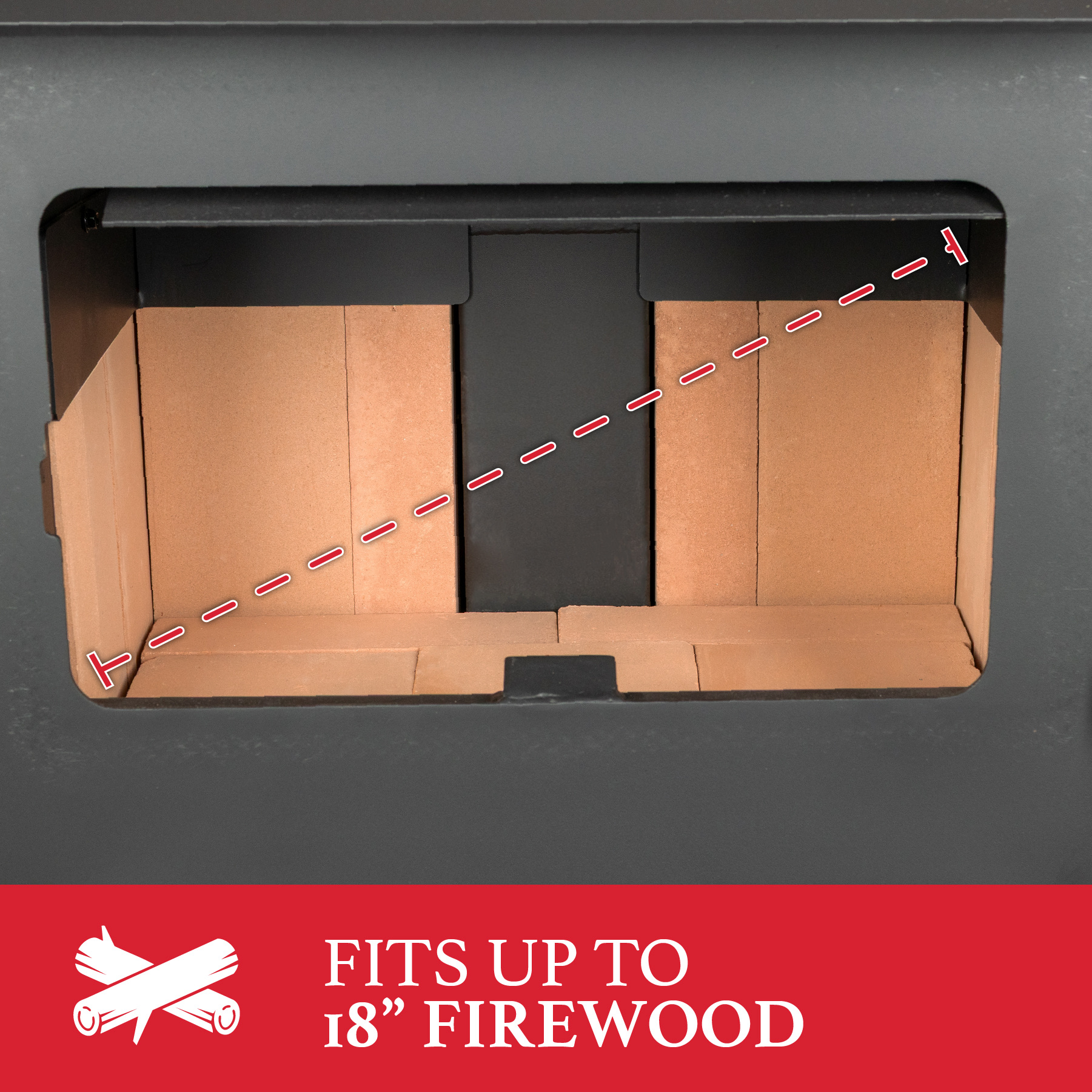

    • Accepts logs up to 18" in length
    • Replaces Vogelzang models TR001, TR001B and TR001WS wood stoves

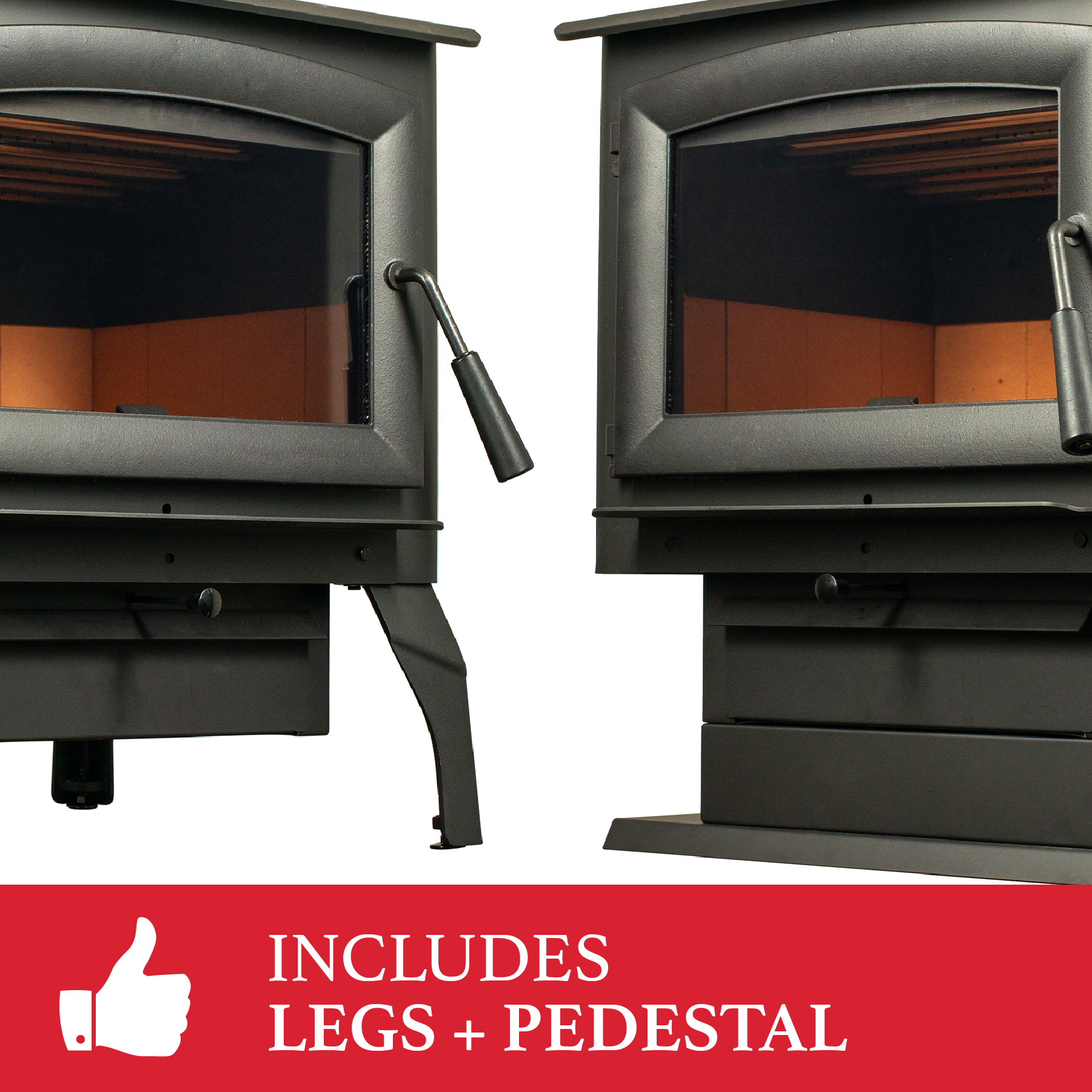

    • Brushed nickel spring door handle and pedestal base provides an elegant look to any room

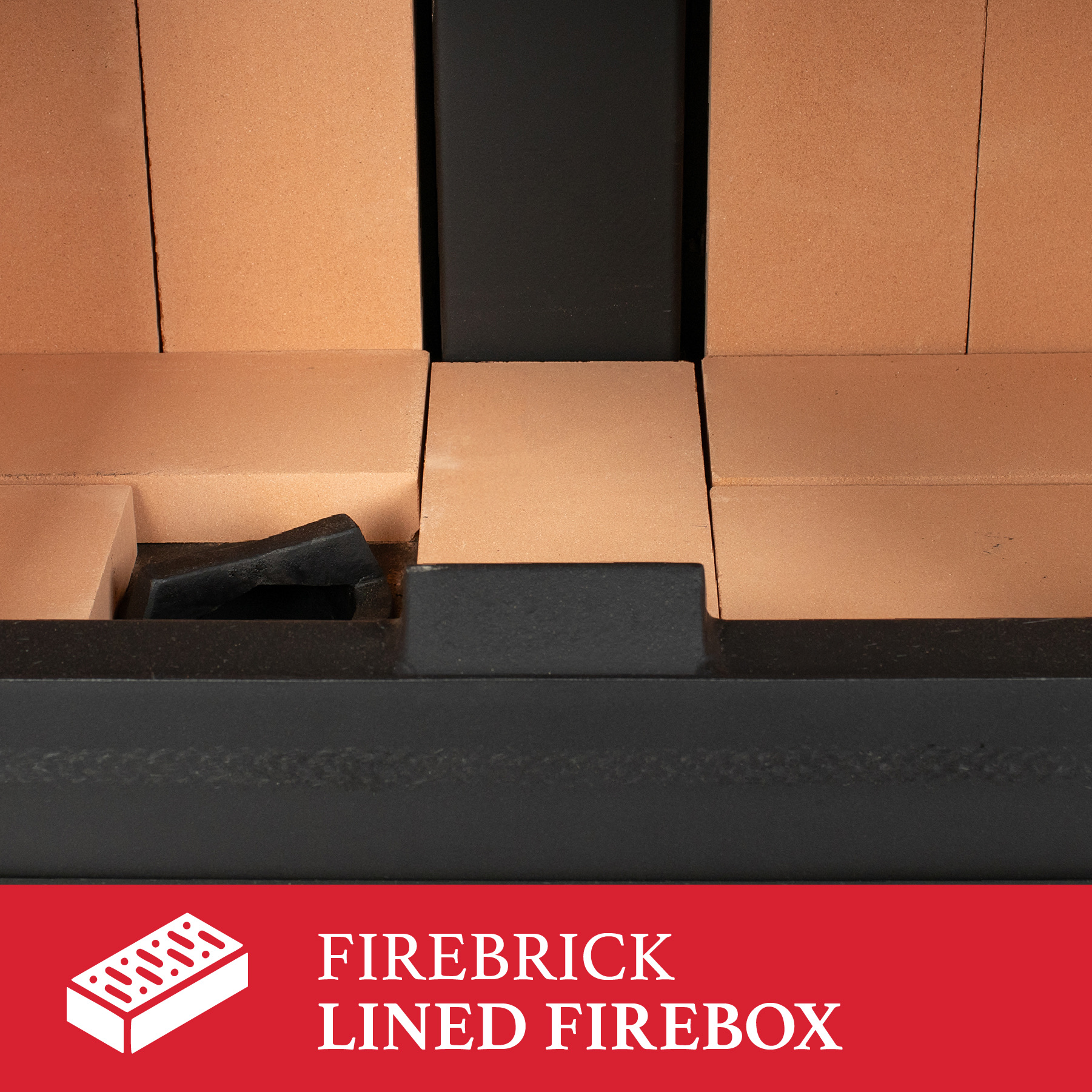

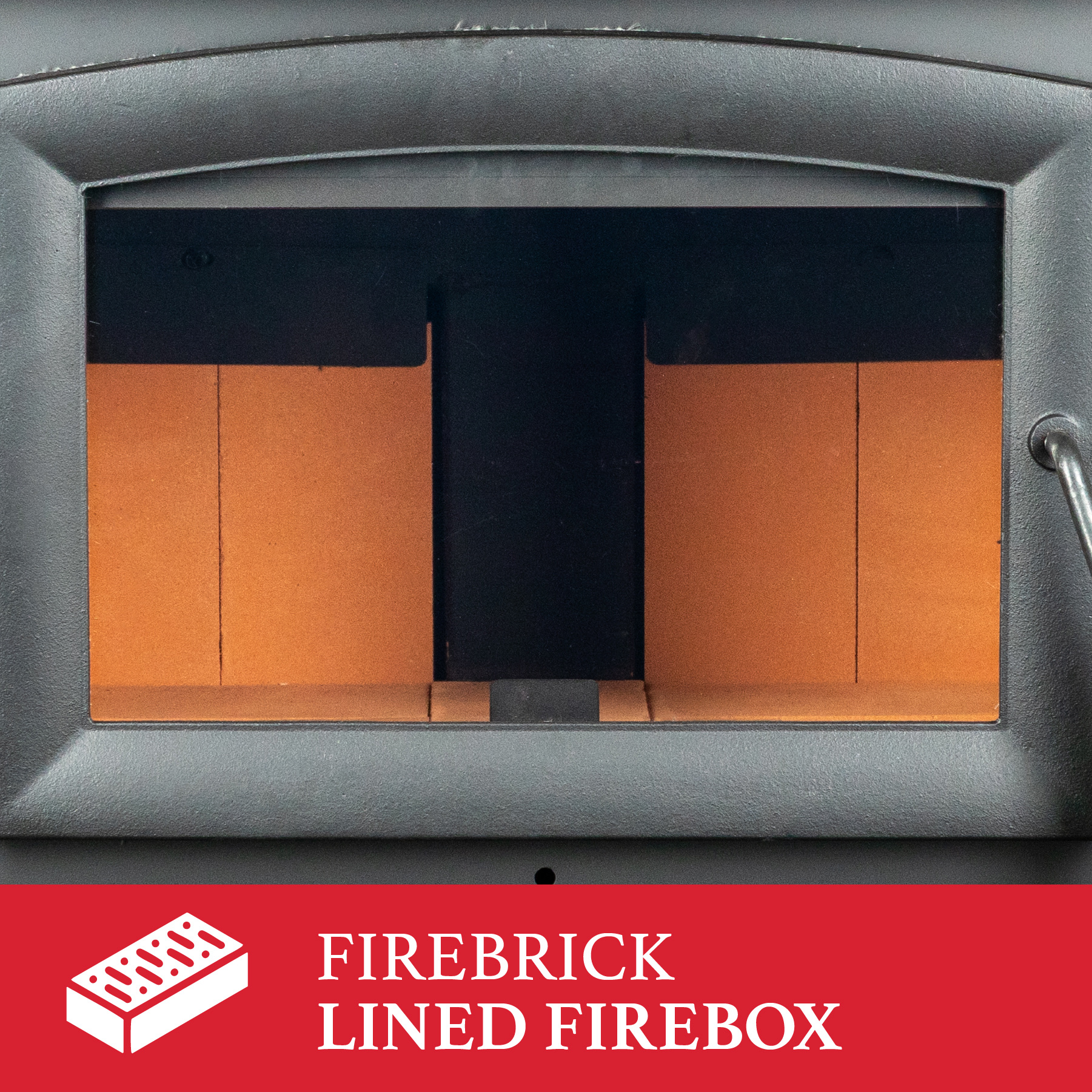

    • Firebrick lined for long life and combustion efficiency
    • 68,000 BTUs heats up to 1,200 Sq. Ft.

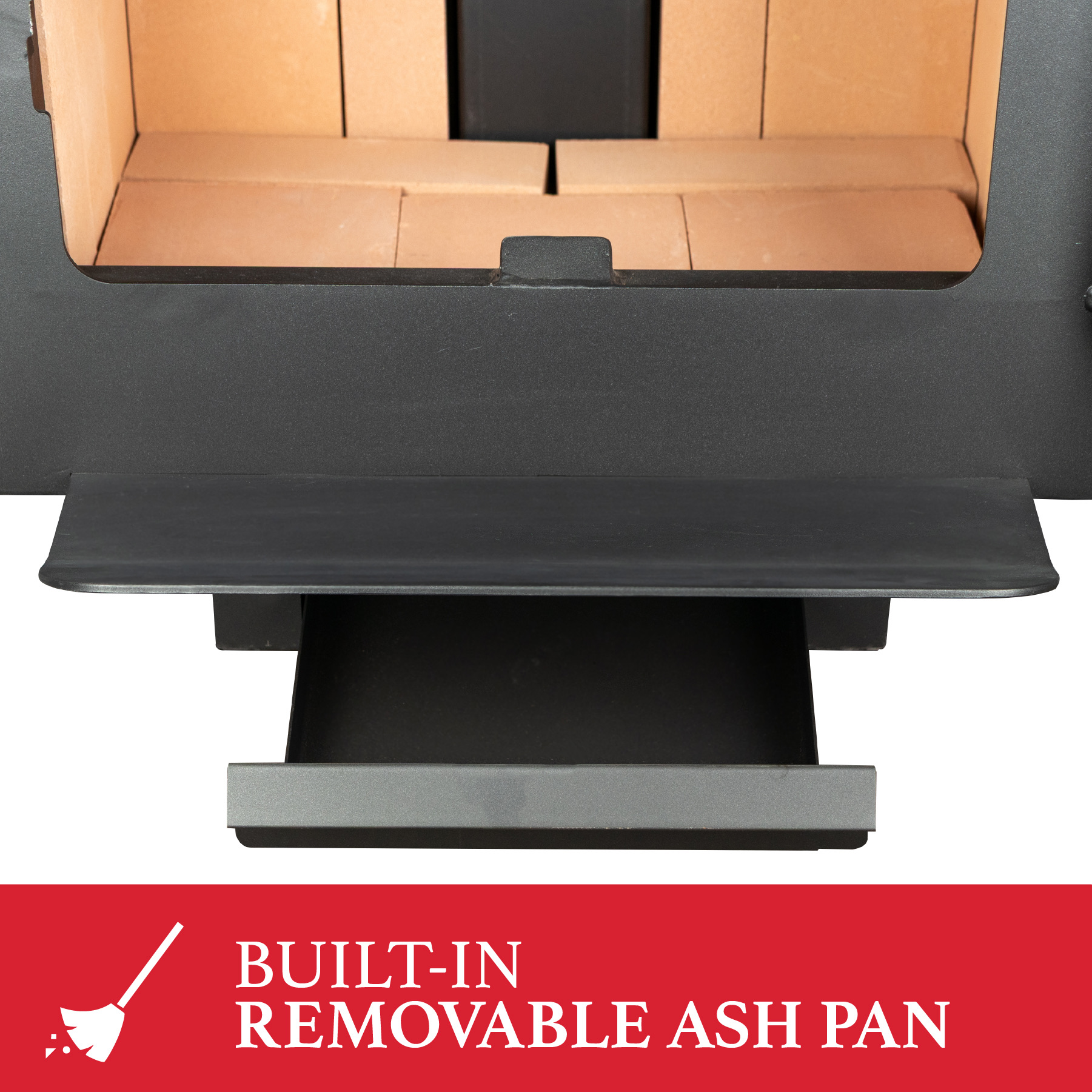

    • Integrated ash pan with brushed nickel handle makes cleanup easy
  • Specifications
    Product Auto Ignition No
    Product Catalytic/Non Catalytic Non Catalytic
    Product Package Contents wood stove, owner's manual, warranty sheet
    Product Collection Name Ashley Hearth Wood Stove
    Product Air Wash System Yes
    Product Width (in) 22.5
    Product Log Length (in) 17
    Product Brick-Lined Firebox Yes
    Product Firebox Height (in) 11.68
    Product Ash Drawer Yes
    Product Blower No
    Product Outside Air Kit No
    Product Firebox Depth (in) 11.00
    Product Firebox Width (in) 18.29
    Product Cooktop No
    Product Vent Location Top
    Product Vented Or Vent-Free Vented
    Product Maximum BTU 68000
    Product Pedestal Base Included Yes
    Product UL Listed Yes
    Product Material plate steel
    Product Removable Water Reservoir No
    Product Manufacturer Warranty Limited Lifetime firebox warranty, 1 Year all other parts, 1 year Electrical parts
    Product CSA Certified No
    Product Stove Type Freestanding
    Product EPA Approved Yes
    Product Depth (in) 21.5
    Product Height (in) 29.8
    Product Heating Area (ft²) 1200
    Product ETL Listed No
    Product Efficiency 68.6
    Product Color / Finish Metallic black
    Product Installation Method floor unit

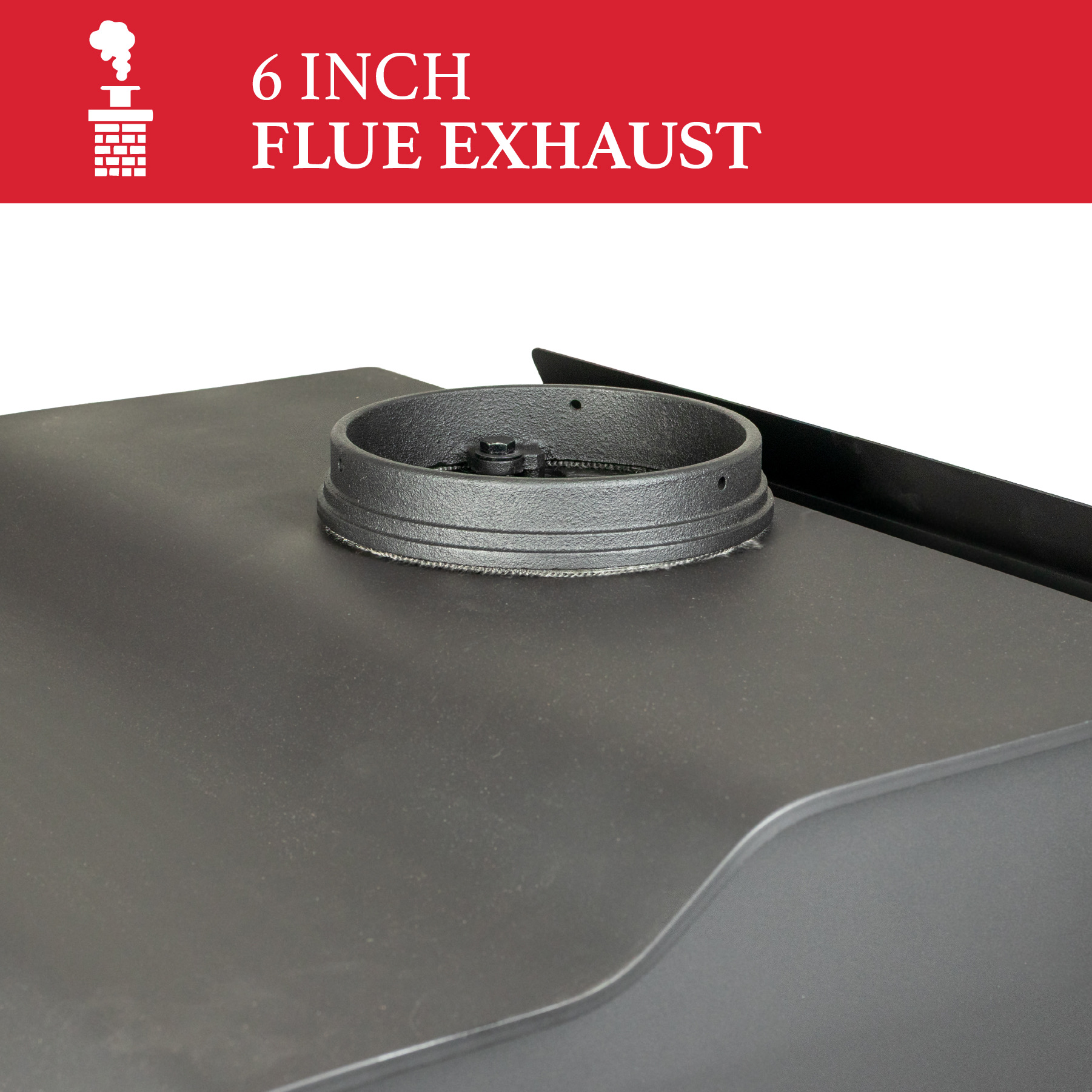

    Product Vent Diameter (in) 6
    Product Venting Required Yes
    Product Temperature Gauge No
    Product Ignition System manual
    Product Wood Or Pellet Burning Wood
    Product Built-In Variable Speed Blower No

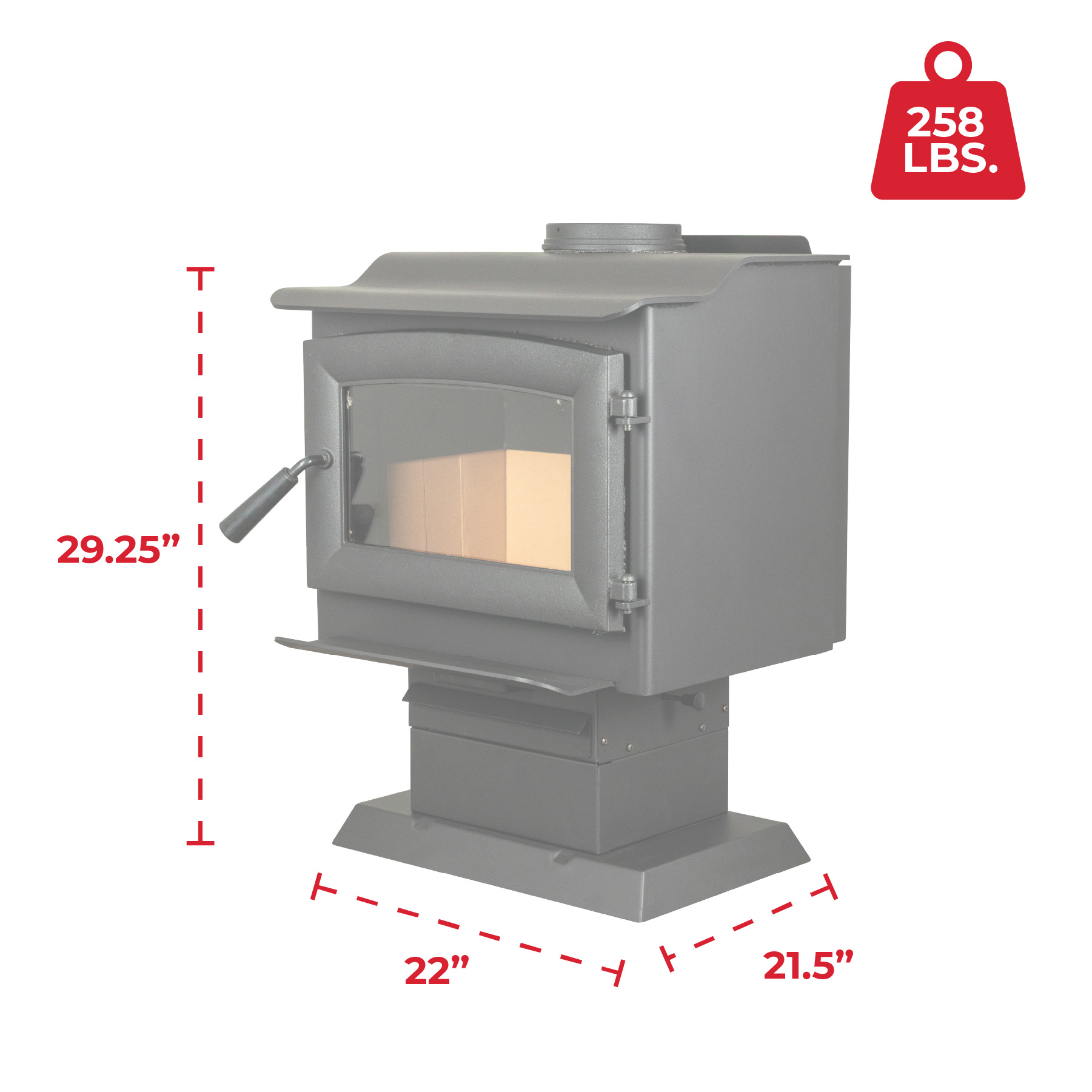

  • Dimensions
    Assembled Width (in) 22.5
    Package Weight 246
    Package Width 30
    Package Height 34
    Assembled Depth (in) 21.5
    Package Depth 24.5
    Assembled Height (in) 29.8
  • Other
    MFG Brand Name Ashley Hearth Products
    Information Effective Date 01/20/2020
    Does this Product Have a Warranty? Yes
    Collection Name Ashley Hearth Wood Stove
    MFG Model # (Series) AW1120E-P
    Manufacturer Warranty Limited Lifetime firebox warranty, 1 Year all other parts, 1 year Electrical parts
    Warranty Type Limited - Parts and Labor
    Supplier Product Type/Category wood stove
    UPC 012685100418
  • Regulatory
    List the Chemicals contained that cause Birth Defects per California Proposition 65 carbon monoxide
    Contains Chemicals that Cause Birth Defects (Calif Prop65) Yes
    Hazardous per DOT No
    California Proposition 65 Warning Required Yes
    Contains Chemicals that Cause Cancer (Calif Prop65) Yes
    Item has Restrictions? No
    List the Chemicals contained that cause Cancer per California Proposition 65 carbon monoxide
  • FAQs
    • What is my warranty?
      All replacement parts are covered for 1 year from the date of purchase. The integrity of the firebox itself is covered for 3 years from the purchase date. Some dealers may sell extended warranties. You will need to contact your dealer for assistance if you have purchased one and are outside of the US Stove coverage time frame.
    • Can I burn corn in my pellet stove?
      No, you cannot burn corn in your pellet stove. The pellet stove was designed and tested for wood pellets only. Burning corn in your stove will void your warranty and may create a safety hazard or cause damage to your stove. You should only burn premium hard wood pellets in your pellet stove. The only exception to this rule is if your stove is specially equipped to burn corn like the 6041 Series stoves. These stoves come with an agitator and a special burn pot to allow them to burn corn and other bio-fuels.
    • What are the slides in the back wall or in the bottom of the firebox for?
      They are clean-outs for the ash build up. These should be cleaned out AT LEAST every burning season or for every ton of pellets burned. You should check them periodically to ensure there’s not a lot of ash build-up. This will greatly affect the performance of your pellet/corn stove!
    • Do I need a Fresh Air Kit?
      This will depend on how air tight the home/building is. If it is very air tight, negative pressure can form and interfere with the proper functioning of the stove. If the unit is installed in a mobile/manufactured home, the fresh air kit is REQUIRED!

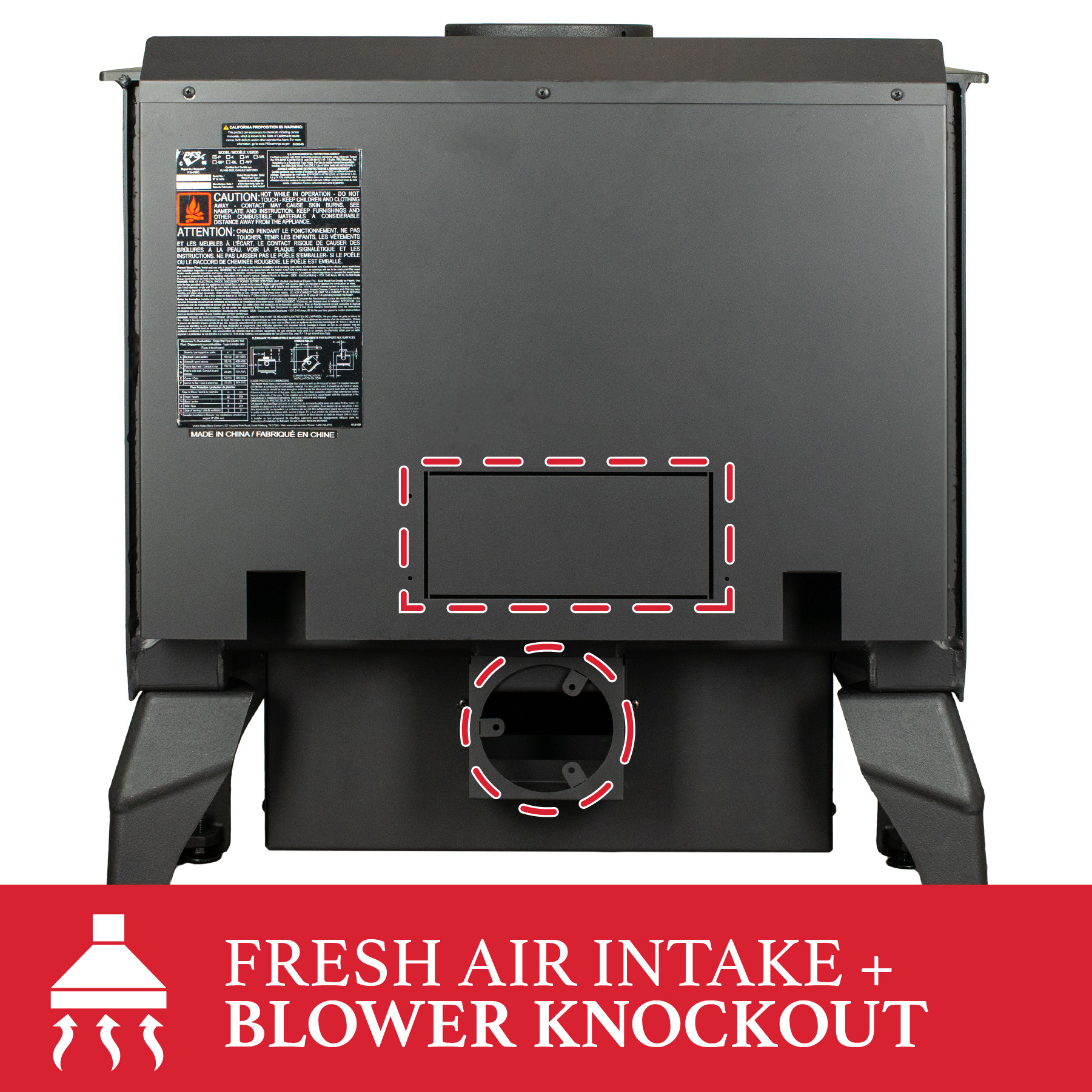

    • What is the second opening on the back of the stove used for?
      The second opening is the unit’s air intake. This is where you would hook up the Fresh Air Kit (Part # 69FAK is a 2in opening and Part # 4FK for the 4 in openings). Piping the intake to the outside allows combustion air to enter the firepot from the outside. This will keep negative pressure from forming within the building. It will also increase the efficiency of your stove. This kit is a requirement for mobile/manufactured homes!
Document File Type File Size Product
AW1120E-P - Warranty application/pdf 175 KB Download️
AW1120E-P Owner's Manual application/pdf 5 MB Download️
  • What is my warranty?
    All replacement parts are covered for 1 year from the date of purchase. The integrity of the firebox itself is covered for 3 years from the purchase date. Some dealers may sell extended warranties. You will need to contact your dealer for assistance if you have purchased one and are outside of the US Stove coverage time frame.
  • Can I burn corn in my pellet stove?
    No, you cannot burn corn in your pellet stove. The pellet stove was designed and tested for wood pellets only. Burning corn in your stove will void your warranty and may create a safety hazard or cause damage to your stove. You should only burn premium hard wood pellets in your pellet stove. The only exception to this rule is if your stove is specially equipped to burn corn like the 6041 Series stoves. These stoves come with an agitator and a special burn pot to allow them to burn corn and other bio-fuels.
  • What are the slides in the back wall or in the bottom of the firebox for?
    They are clean-outs for the ash build up. These should be cleaned out AT LEAST every burning season or for every ton of pellets burned. You should check them periodically to ensure there’s not a lot of ash build-up. This will greatly affect the performance of your pellet/corn stove!
  • Do I need a Fresh Air Kit?
    This will depend on how air tight the home/building is. If it is very air tight, negative pressure can form and interfere with the proper functioning of the stove. If the unit is installed in a mobile/manufactured home, the fresh air kit is REQUIRED!
  • What is the second opening on the back of the stove used for?
    The second opening is the unit’s air intake. This is where you would hook up the Fresh Air Kit (Part # 69FAK is a 2in opening and Part # 4FK for the 4 in openings). Piping the intake to the outside allows combustion air to enter the firepot from the outside. This will keep negative pressure from forming within the building. It will also increase the efficiency of your stove. This kit is a requirement for mobile/manufactured homes!
