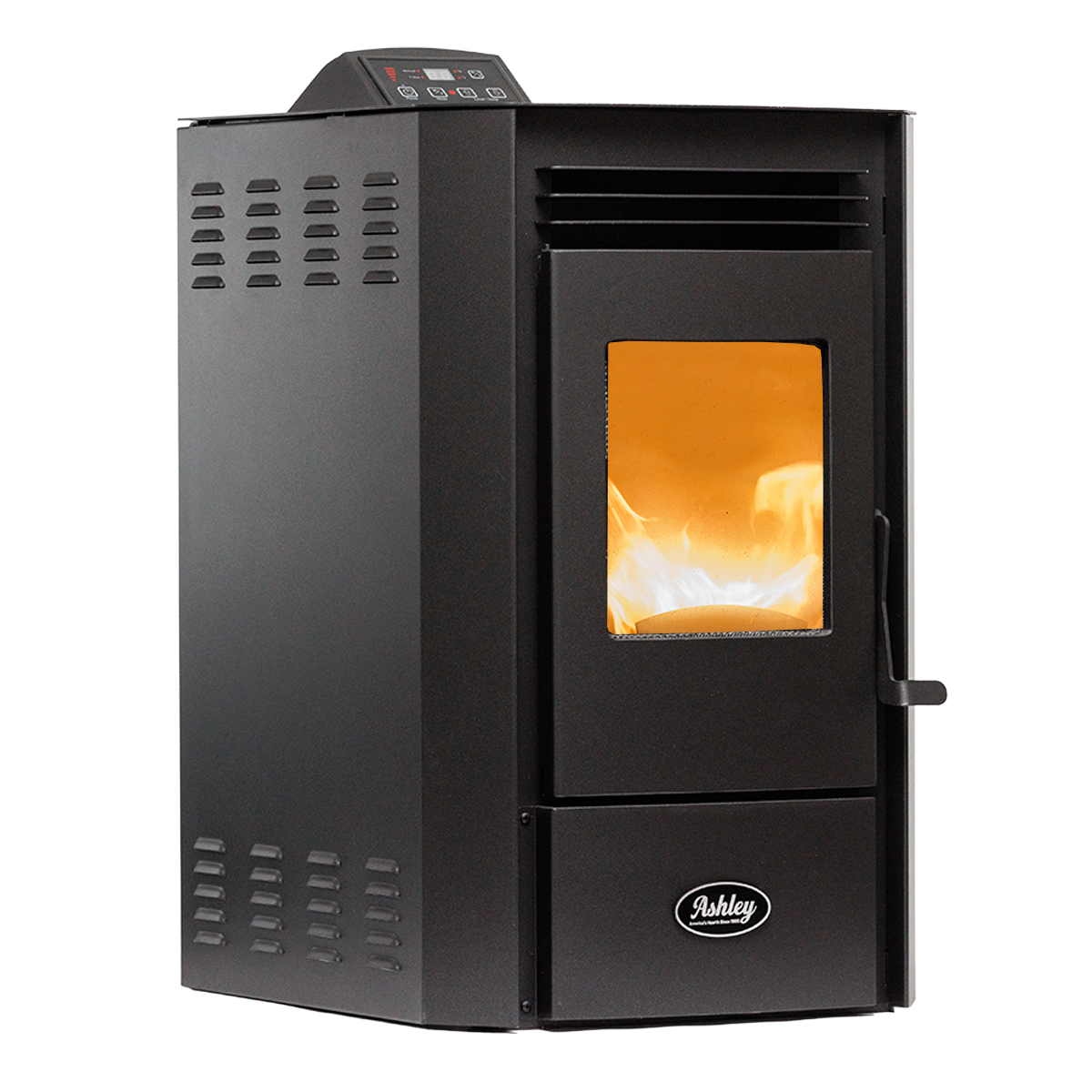

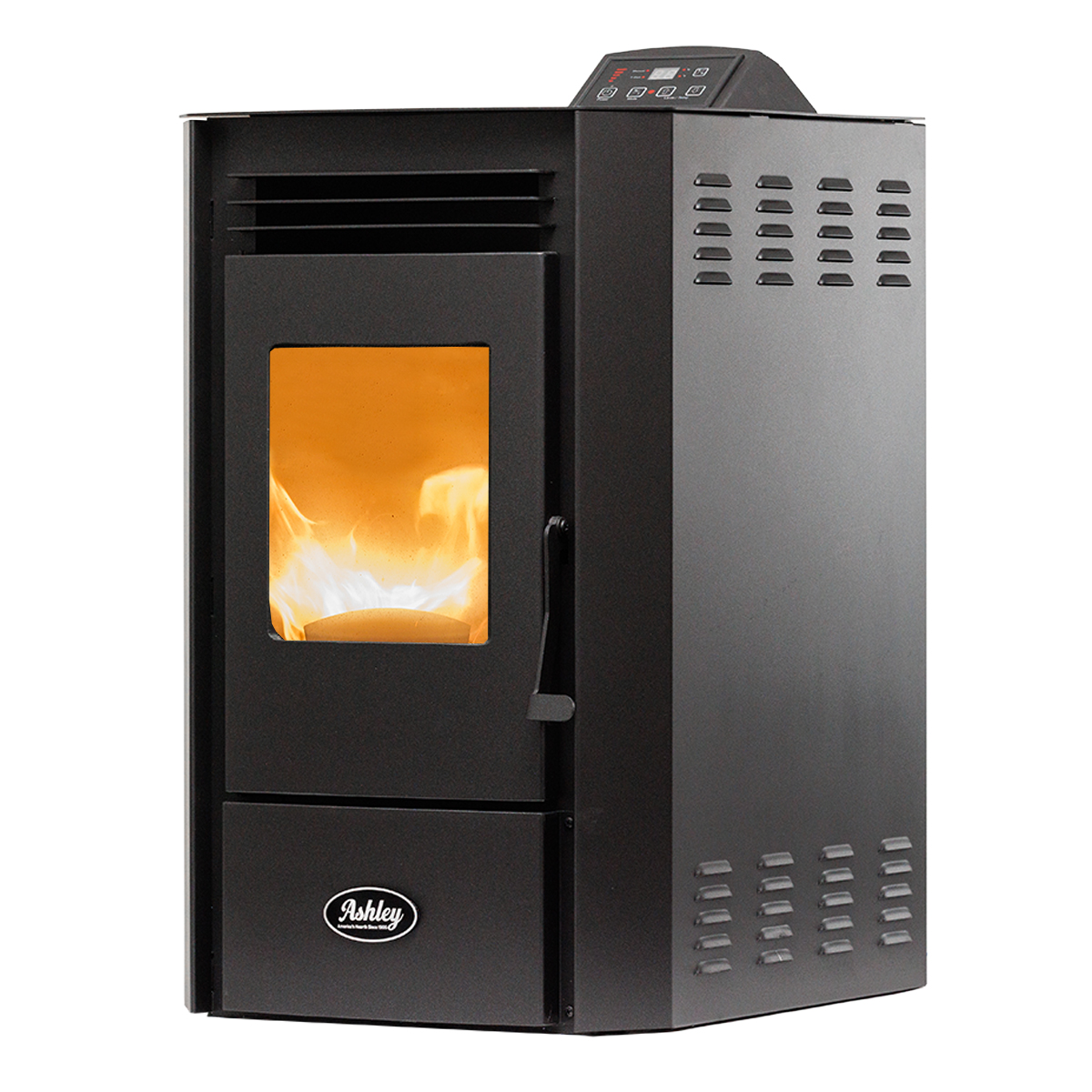

Ashley AP5613 Pellet Stove 50 lb. Hopper (1,300 Sq. Ft.)

Ashley AP5613 Pellet Stove 50 lb. Hopper (1,300 Sq. Ft.)

The Ashley Hearth AP5613 small footprint wood pellet stove efficiently heats up to 1,300 sq ft. The AP5613 wood pellet stove incorporates a largest in class 50 lb. pellet hopper for up to 25 hours of continuous warmth and comfort. The advanced AURORA diverse airflow burner system provides your family with a beautiful flame and an unmatched increase in airflow and heat output. This combination of modern styling, improved heat output, significant heating efficiency, and a larger wood pellet hopper capacity provides a great solution to your heating needs. THE AP5613 comes complete with a wireless remote control to allow easy operation and heat adjustment at the touch of a button. Wood pellet fuel is a carbon neutral green energy and the most environmentally friendly fuel on the market today. The AP5613 wood pellet stove exceeds 75% efficiency and qualifies for the 30% IRS Sec.(25C) Residential Energy Tax Credit.

  • Model #: AP5613

  • Features
    • Heats Up To 1,300 Square Feet of Living Space
    • Compact 50 lb. Hopper Operates Up To 25 Hours
    • Utilizes Exclusive AURORA High Effeciency Technology
    • Qualifies For IRS 25C Residential Energy Tax Credit
    • Easy To Use Electronic Ignition
    • Features Upgraded Ceramic Glass And Air Wash System
    • Easy To Use Top Mounted Controls
  • Specifications
    Product Vented Or Vent-Free Vented
    Product ETL Listed Yes
    Product EPA Approved Yes
    Product CSA Certified Yes
    Product Stove Type Freestanding
    Product Brick-Lined Firebox No
    Product Hopper Capacity (ft³) 50
    Product Heating Area (ft²) 1300
    Product Cooktop No
    Product Outside Air Kit No
    Product Manufacturer Warranty 5 year limited firebox warranty, 1 year all other parts, 1 year electrical parts
    Product Pedestal Base Included No
    Product UL Listed Yes
    Product Vent Location Rear
    Product Auto Ignition Yes
    Product Blower Yes
    Product Catalytic/Non Catalytic Non Catalytic
    Product Removable Water Reservoir No
    Product Air Wash System Yes
    Product Temperature Gauge Yes
    Product Venting Required Yes
    Product Wood Or Pellet Burning Pellet
    Product Vent Diameter (in) 3
    Product Package Contents Pellet Stove
    Product Touchpad Controls Yes
    Product Ash Drawer No
  • Dimensions
    Package Height 33.75 in
    Package Width 25.25 in
    Package Depth 21.75
    Package Weight 165 lbs
    Assembled Height 33.9 in
    Assembled Width 18.5 in
    Assembled Depth 21.3 in
    Assembled Weight 142 lbs
  • Other
    MFG Brand Name Ashley Hearth
    Information Effective Date 01/01/2022
    Does this Product Have a Warranty? Yes
    MFG Model # (Series) AP5613
    Manufacturer Warranty 5 Year Firebox Warranty, 1 Year all Other Parts, 1 Year Electrical Parts
    Warranty Type Limited-Parts
    Supplier Product Type/Category Home - Heating, Cooling & Air Quality
    Search Keywords Pellet Stove
    Warranty Type of Effective Date Purchase Date
    UPC 012685706139
  • Regulatory
    California Proposition 65 Warning Required Yes
    Contains Chemicals that Cause Cancer (Calif Prop 65) Yes
    Item has Restrictions? No
    List the Chemicals that cause Cancer per California Proposition 65 Carbon Monoxide
  • FAQs
    • What is my warranty?
      All replacement parts are covered for 1 year from the date of purchase. The integrity of the firebox itself is covered for 3 years from the purchase date. Some dealers may sell extended warranties. You will need to contact your dealer for assistance if you have purchased one and are outside of the US Stove coverage time frame.
    • Can I burn corn in my pellet stove?
      No, you cannot burn corn in your pellet stove. The pellet stove was designed and tested for wood pellets only. Burning corn in your stove will void your warranty and may create a safety hazard or cause damage to your stove. You should only burn premium hard wood pellets in your pellet stove. The only exception to this rule is if your stove is specially equipped to burn corn like the 6041 Series stoves. These stoves come with an agitator and a special burn pot to allow them to burn corn and other bio-fuels.

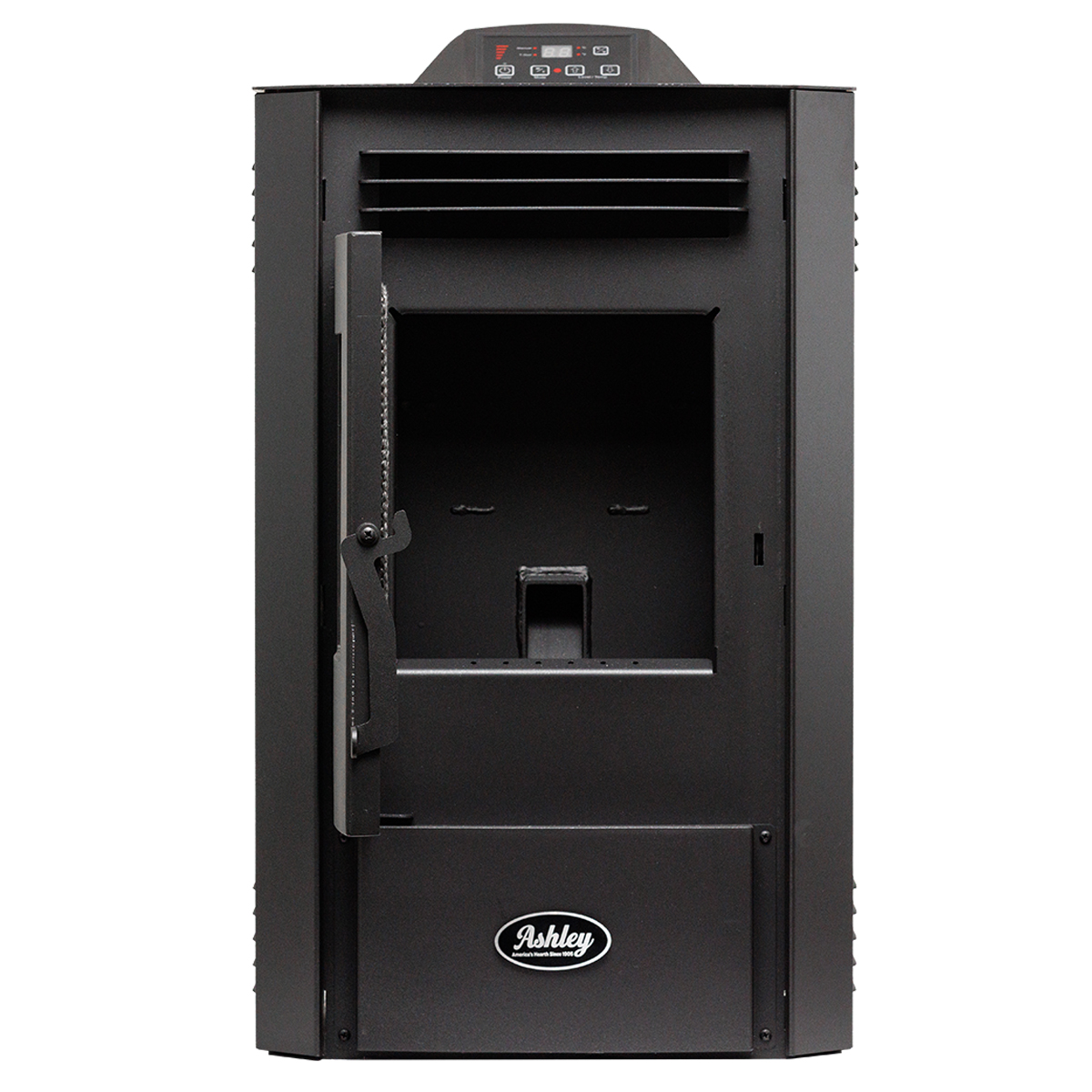

    • What are the slides in the back wall or in the bottom of the firebox for?
      They are clean-outs for the ash build up. These should be cleaned out AT LEAST every burning season or for every ton of pellets burned. You should check them periodically to ensure there’s not a lot of ash build-up. This will greatly affect the performance of your pellet/corn stove!
    • Do I need a Fresh Air Kit?
      This will depend on how air tight the home/building is. If it is very air tight, negative pressure can form and interfere with the proper functioning of the stove. If the unit is installed in a mobile/manufactured home, the fresh air kit is REQUIRED!

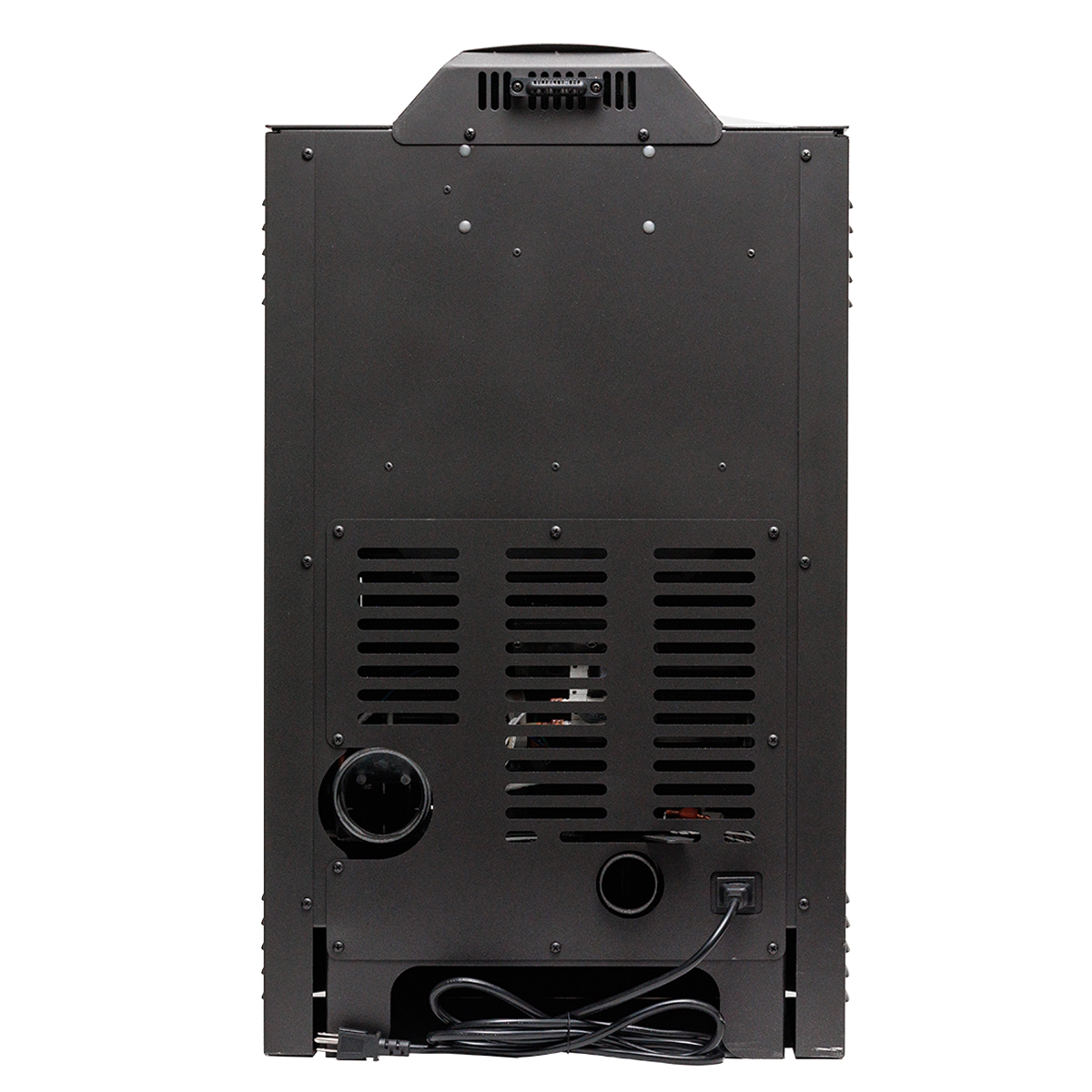

    • What is the second opening on the back of the stove used for?
      The second opening is the unit’s air intake. This is where you would hook up the Fresh Air Kit (Part # 69FAK is a 2in opening and Part # 4FK for the 4 in openings). Piping the intake to the outside allows combustion air to enter the firepot from the outside. This will keep negative pressure from forming within the building. It will also increase the efficiency of your stove. This kit is a requirement for mobile/manufactured homes!
Document File Type File Size Product
AP5613 Owners Manual application/pdf 6 MB Download
